Product Details
＋

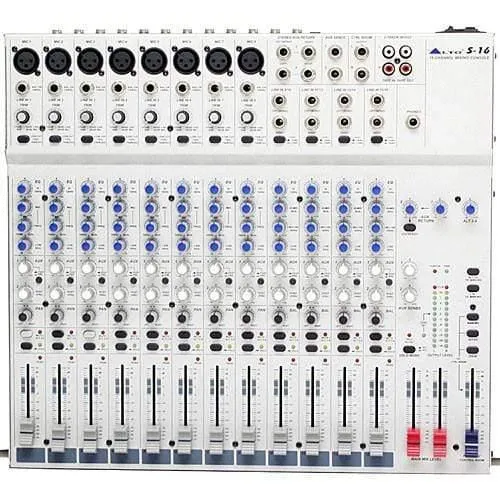

Are you looking for an affordable and feature-rich solution for your home studio, project studio, sound reinforcement, or video editing needs? The Alto Professional S16 16-Channel 2-Bus Desktop Recording Mixer is the perfect choice! With 16 total channels, 8 microphone inputs, 12 mono channels, 2 dedicated stereo channels, 3-band EQ with mid sweep, and 4-band EQ on mono inputs, this mixer is an excellent choice for those looking for professional sound quality on a budget.
FEATURES
- 16 Total Channels
- 8 Microphone Inputs
- 12 Mono Channels
- 2 Dedicated Stereo Channels
- 3-Band EQ with Mid Sweep
- 4-Band EQ On Mono Inputs
- 2 Aux Sends
- ALT 3/4 Output Routing
SPECIFICATIONS
| Total # Of Inputs | 16 |
| Mic/Line Inputs | 8 Microphone - 3-pin XLR 16 - 1/4" Phone Line |
| Stereo Line Inputs | 2 - L/R 1/4" Phone |
| In-Line Inputs/Returns | No |
| AUX Sends | 2 - 1/4" Phone |
| AUX Returns | 2 - L/R 1/4" Phone |
| Inserts | No |
| BUS (Group) Outputs | Main Mix - Balanced 3-pin XLR Main Output - Balanced L/R 1/4" Phone |
| 2 Trk Master I/O | Stereo RCA Phono I/O |
| ALT I/O | ALT 3/4 Output - Balanced L/R 1/4" Phone |
| Monitor Outputs | Control Room - Balanced L/R 1/4" Phone |
| EQ Section | Hi Shelving /- 15dB @ 12kHz Mid Bell (Mono) /- 15dB @ 100Hz Hi Mid (Stereo) /- 15dB @ 3kHz Mid Low (Stereo) /-15dB @ 500Hz Low Shelving /- 15dB @ 80Hz Low Cut Filter 75Hz, 18dB/oct. |
| Solo/Mute | Mute/ALT 3-4 Switch |
| Channel Level Control | Fader Controls |
| Trim/Gain Control | Sealed Rotary Potentiometers |
| Phantom Power | 48V |
| Metering | Dual Peak LEDs |
| Frequency Response | 10Hz to 15kHz |
| Dynamic Range | Not Specified By Manufacturer |
| Signal-to-Noise Ratio | -100.00dBr |
| Total Harmonic Distortion (THD) | 0.005% @ 4dBu, 1kHz |
| Power Supply | USA/Canada 100-120V~, 60Hz35W |
| Dimensions (WxHxD) | 16 x 3.1 x 14.6" (408 x 80 x 370mm) |
| Weight | 11.5 lb (5.2kg) |
HOW IT WORKS:
1. Plug in your microphones and other audio sources into the appropriate inputs.2. Adjust the EQ settings and other parameters to achieve your desired sound.
3. Connect the outputs to your speakers, monitors, recorders, etc.
4. Use the mute switches to send audio to the ALT 3/4 outputs.
PRODUCT FAQ:
Q: Does the S16 have phantom power?A: Yes, the S16 features 48V phantom power that is switched globally.
Q: Does the S16 have inserts?
A: Yes, inserts are provided on all mono input channels.
