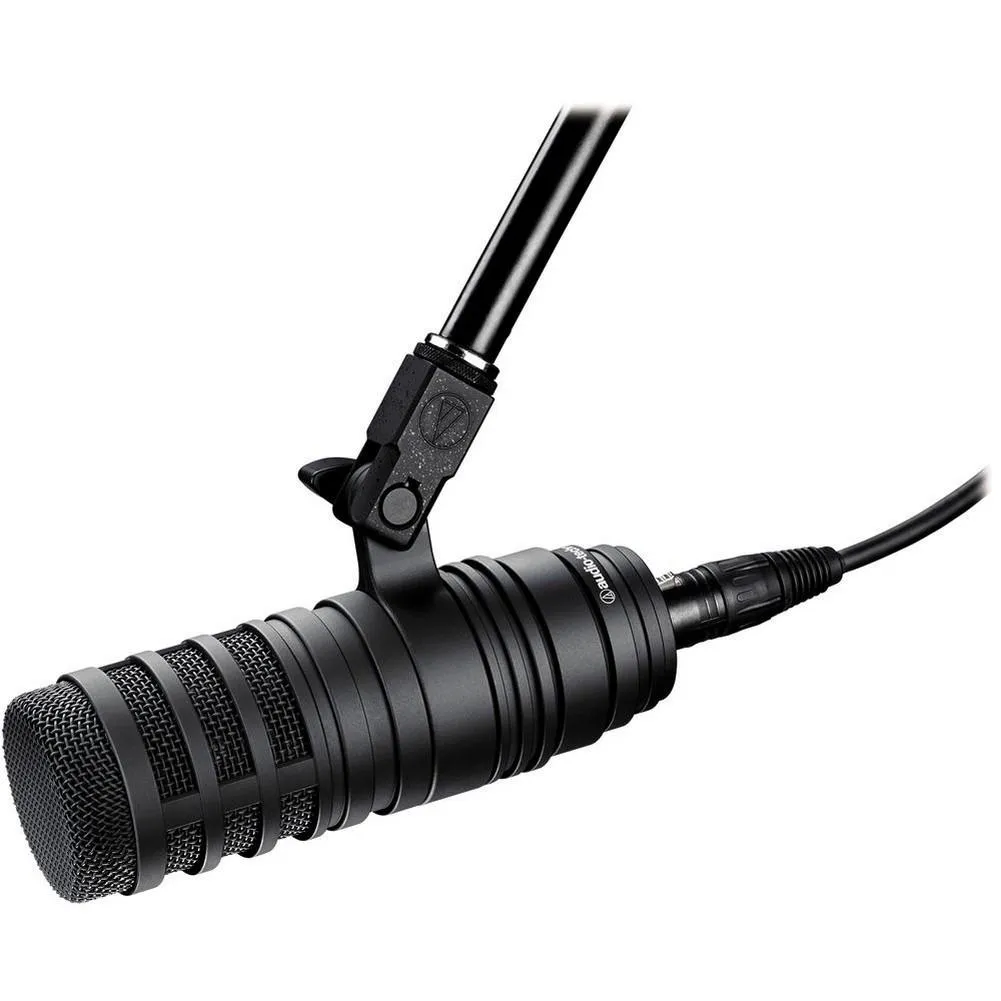

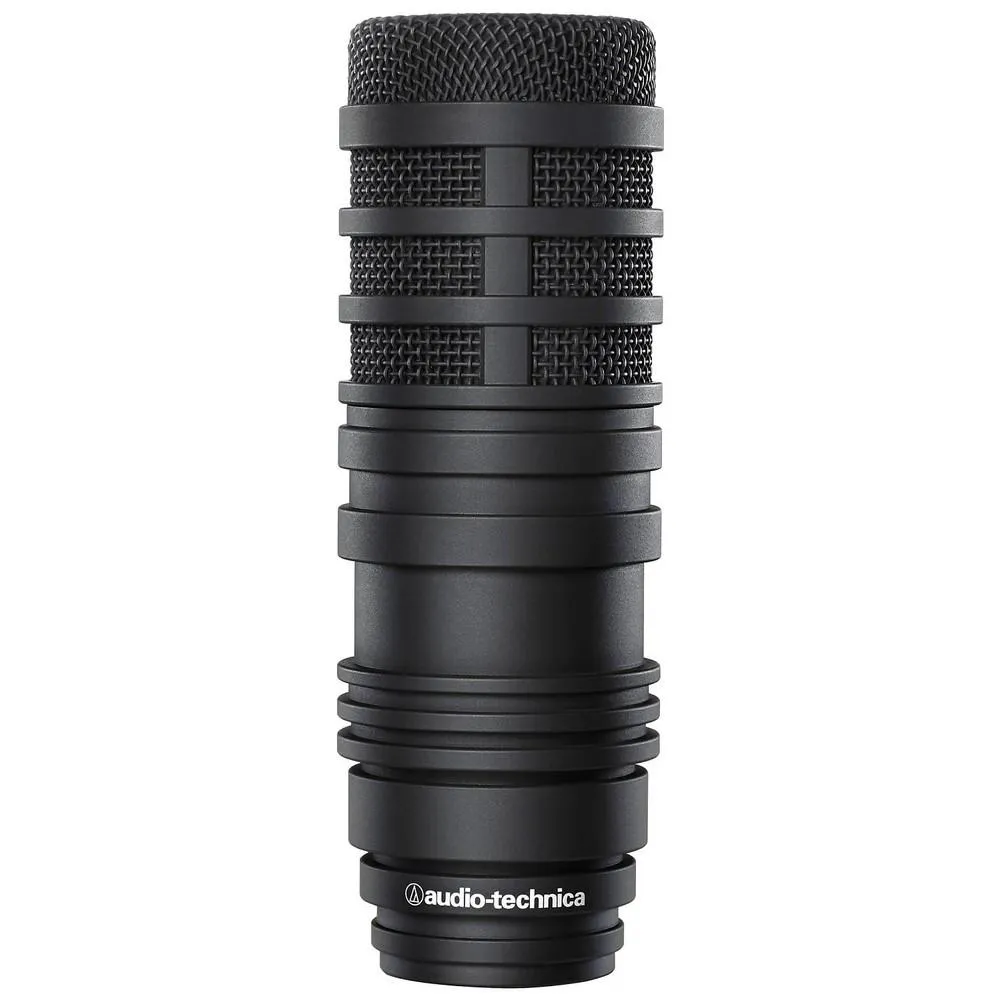

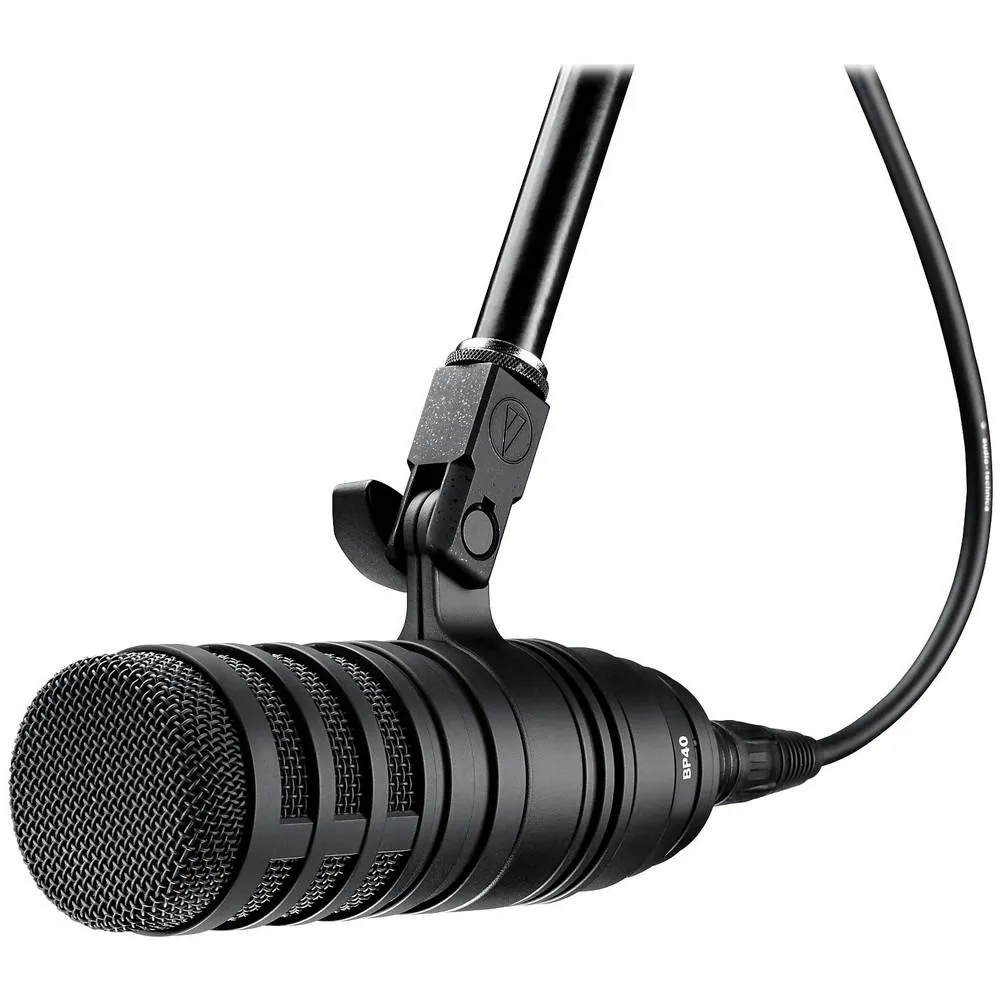

The BP40 broadcast vocal microphone offers a rich, natural, condenser-like sound from a large-diaphragm dynamic design. The large diaphragm features patented floating-edge construction that maximises diaphragm surface area and optimises overall diaphragm performance, while the humbucking voice coil prevents electromagnetic interference (EMI).
With rugged construction and stylish, waveform-inspired design, the BP40 delivers clear and articulate reproduction, ideal for any broadcast application. Optimised capsule placement helps maintain a commanding vocal presence even at a distance, while the multistage windscreen provides superior internal pop filtering. The BP40 broadcast microphone also includes a switchable 100 Hz high-pass filter to provide even more pop protection.
Features
- Rich, natural, condenser-like sound
- Large diameter diaphragm with patented floating-edge construction for optimal diaphragm performance
- Humbucking coil prevents electromagnetic interference (EMI)
- Hypercardioid polar pattern improves isolation
- Switchable 100 Hz high-pass filter
- Superior off-axis rejection for maximum gain before feedback
- Optimised capsule placement for commanding vocal presence even at a distance

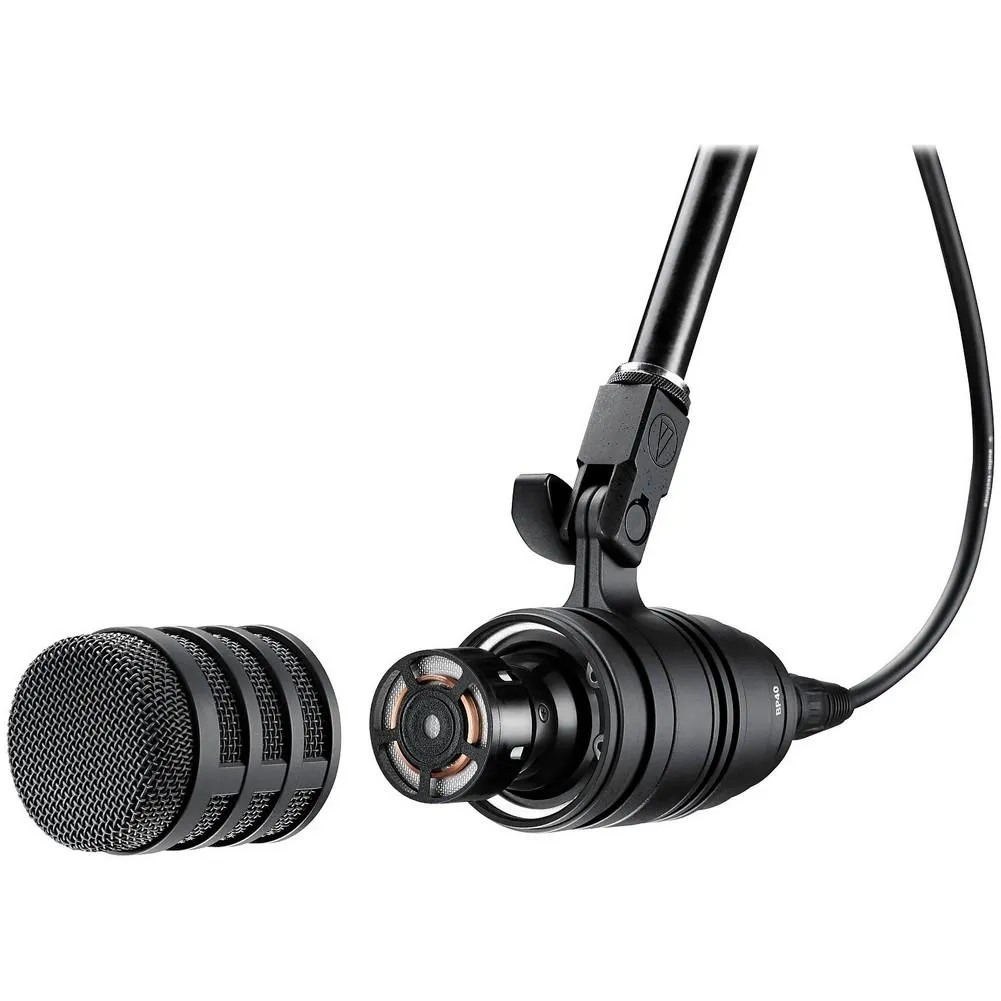

- Multistage windscreen provides superior internal pop filtering
- Rugged, all-metal construction for dependable use in professional broadcast environments
Specs
Element |
Dynamic |
Polar Pattern |
Hypercardioid |
Frequency Response |
50 -16,000 Hz |
Open Circuit Sensitivity |
–48 dB (3.9 mV) re 1V at 1 Pa |
Impedance |
450 ohms |
Switches |
Flat, roll-off |
Weight |
632 g |
Dimensions |
164.0 mm (6.45″) long, 56.0 mm (2.20″) diameter |
Output Connector |
Integral 3-pin XLRM-ty |
