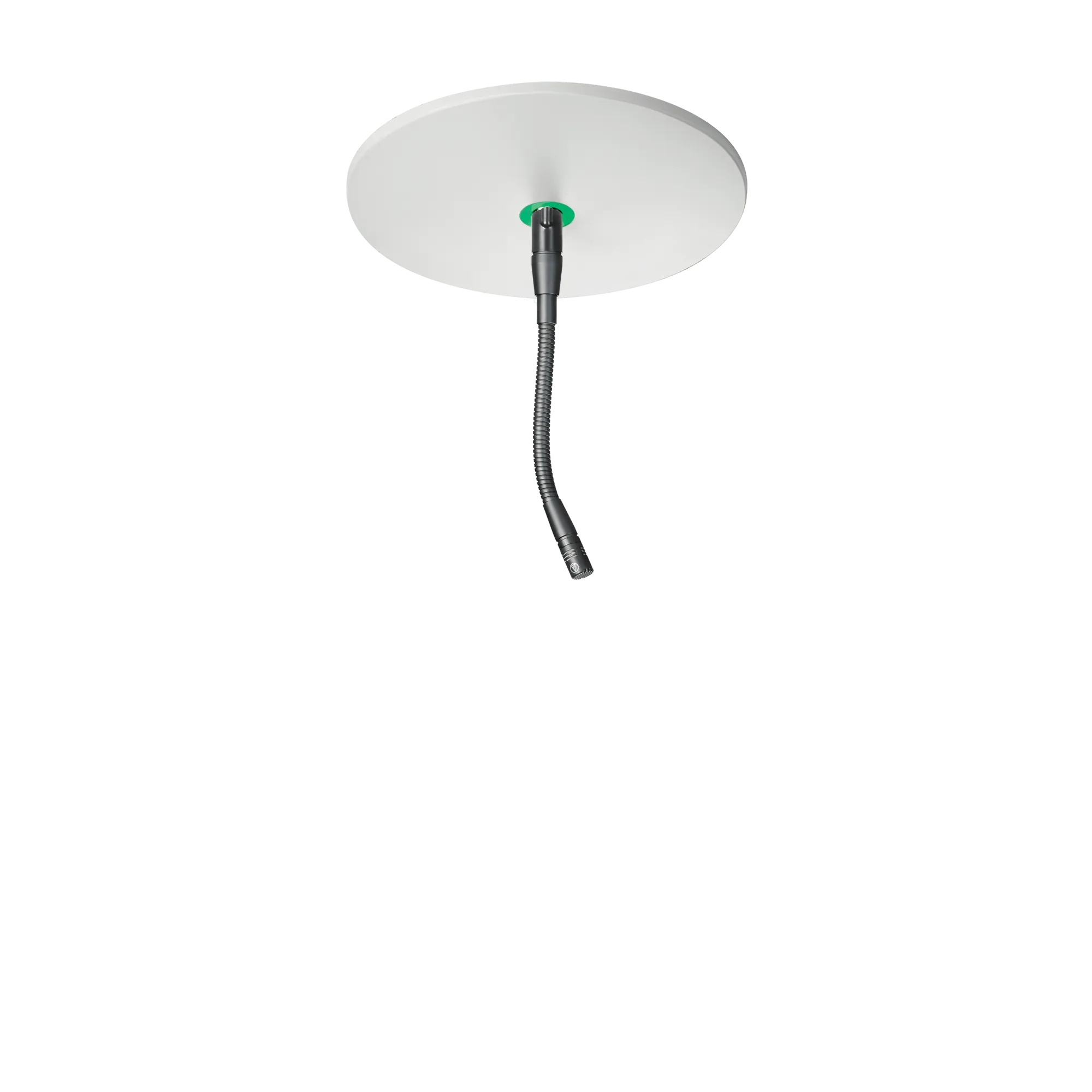

With its low-profile and rugged-yet-highly-flexible design, the ATND931a condenser gooseneck microphone is a perfect fit for boardrooms, school and government settings, teleconferencing, houses of worship and other installed applications. The microphone, which features UniGuard® RFI-shielding technology for outstanding rejection of radio frequency interference (RFI), attaches to the provided ATND8734a Dante-enabled wall/ceiling plate power module via a special TA3F-type connector designed to optimize RFI immunity.

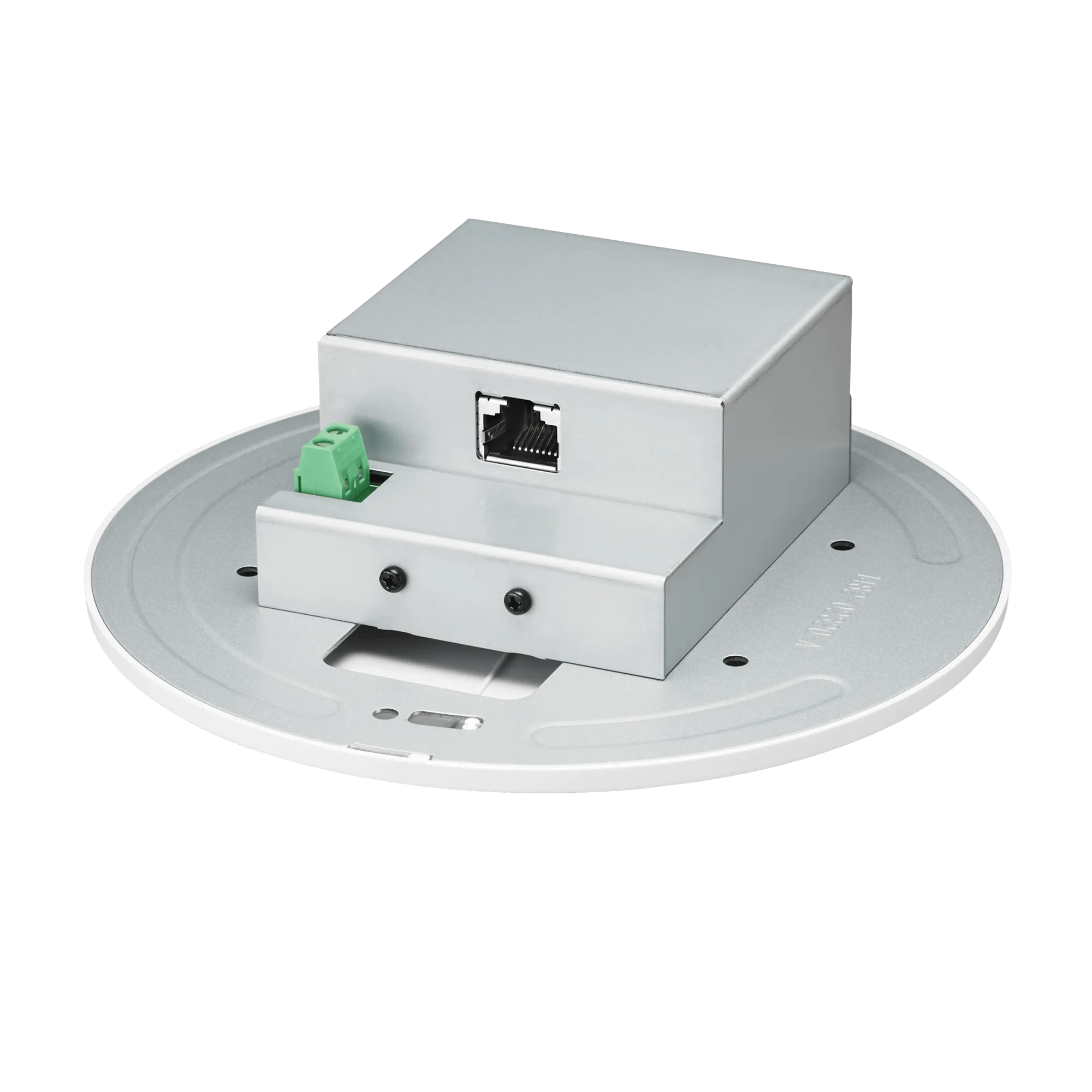

The power module is equipped with an 80 Hz low-cut UniSteep® filter, three-position input gain level selector ( 30 dB, 40 dB, and 50 dB), and a red/green LED status indicator (all controlled remotely via third-party software*). It mounts in a standard metal U.S. 2-gang electrical box, and its RJ45 output jack allows for easy connection to the network via CAT5e (or better) cable.
The ATND931a also offers plug-and-play compatibility with AES67 networks, including those that utilize Livewire, RAVENNA and Q-LAN AoIP technologies, and has expansive Dante Domain Manager features, including role-based security, cross-subnet routing, SNMP alerts, and more.

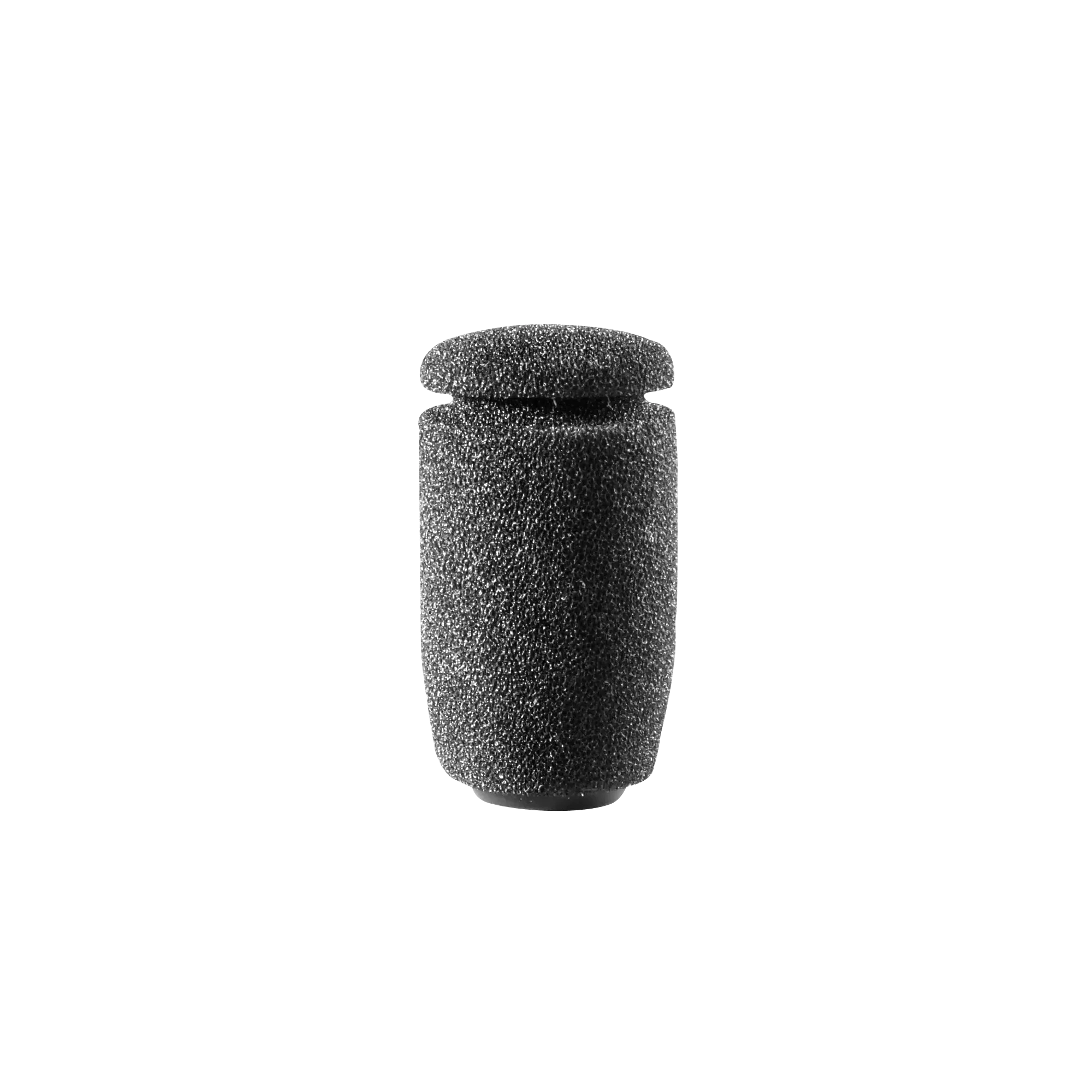

Includes a two-stage foam windscreen. Additional interchangeable elements – omnidirectional (360°), cardioid (120°), hypercardioid (100°), and MicroLine® (90°) – are available separately.
ATND931aH: hypercardioid polar pattern (100° acceptance angle); low-reflectance black finish.

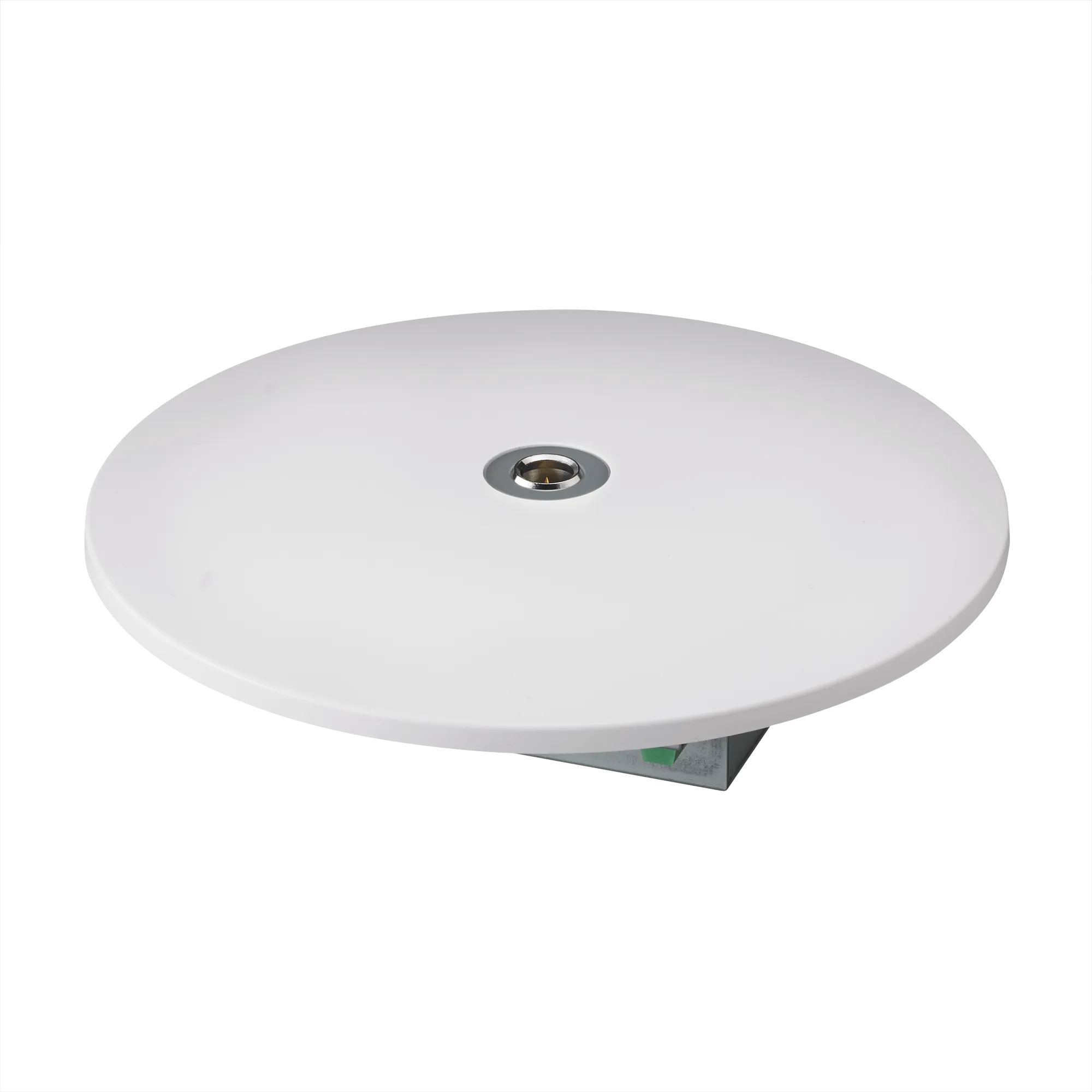

- Wall/ceiling plate power module with Dante™ network output permits permanent installation in standard, 2-gang electrical box and direct connection to the network via Ethernet cable
- Low-profile design with low-reflectance finish for minimum visibility
- Superior off-axis rejection for maximum gain before feedback
- Logic input accepts external switches for connection to the Dante network
- UniGuard® RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
- UniSteep® filter provides a steep low-frequency attenuation to minimize pickup of undesired ambient noise

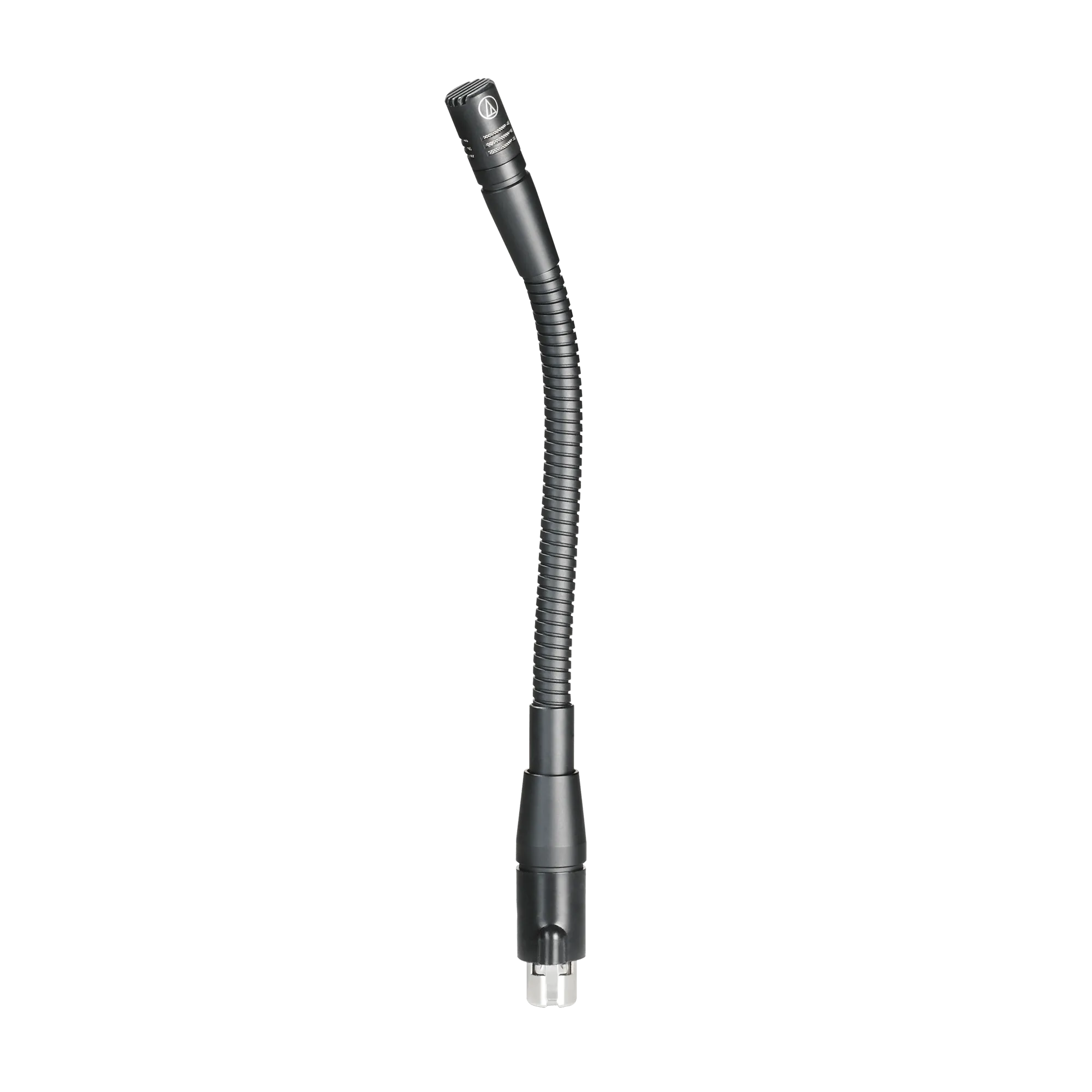

- Rugged, easy-to-adjust, small-diameter gooseneck can be positioned quickly into desired shape
- Available interchangeable elements permit angle of acceptance from 90° to 360°
- Ideal for boardrooms, school and government settings, teleconferencing, houses of worship and other installed applications
- Plug-and-play compatibility with AES67 networks, including those that utilize Livewire, RAVENNA and Q-LAN AoIP technologies
- Increases Dante Domain Manager features, adding role-based security, cross-subnet routing, SNMP alerts and more
| Microphones |
| Element |
Fixed-charge back plate, permanently polarized condenser |
| Frequency Response |
30-20,000 Hz |
| Low Frequency Roll Off |
80 Hz, 18 dB/octave |
| Maximum Input Sound Level |
-15 dBu @ 30 dB gain
-25 dBu @ 40 dB gain
-35 dBu @ 50 dB gain
|
| Signal-to-Noise Ratio |
68 dB, 1 kHz at 1 Pa |
