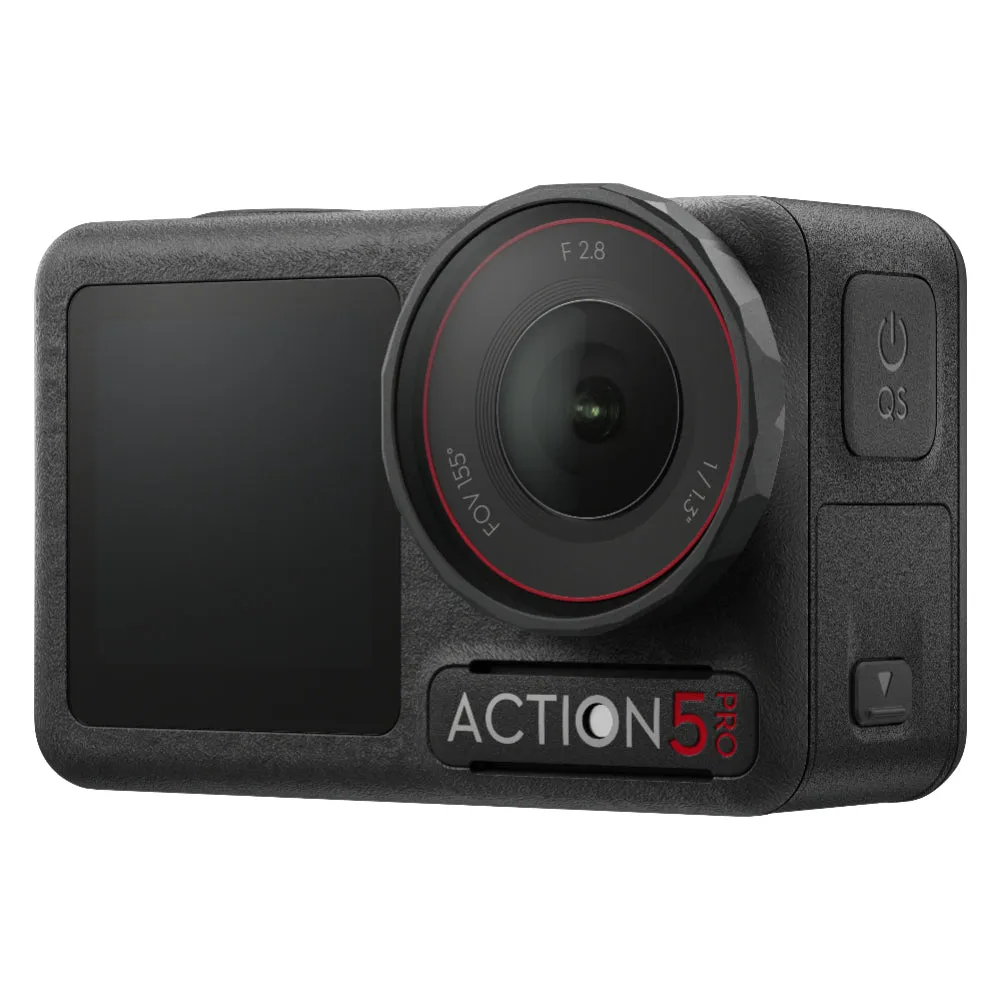

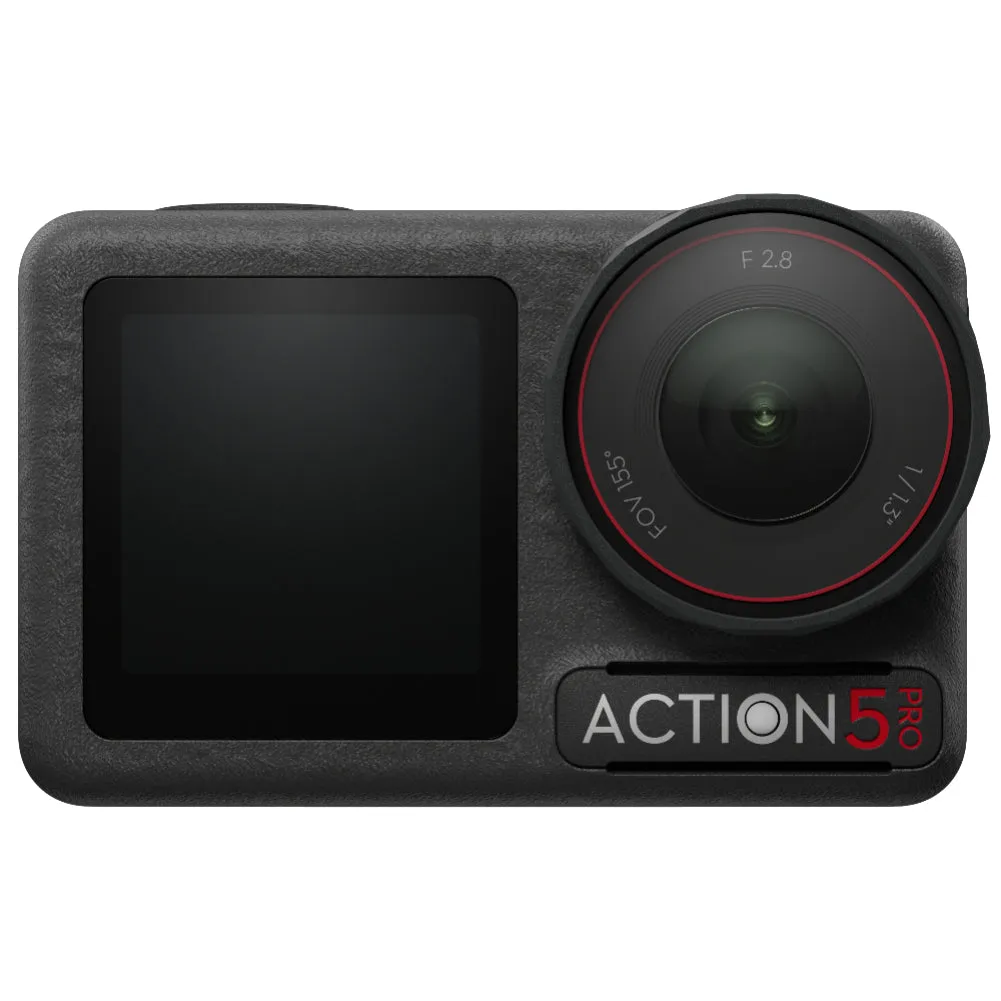

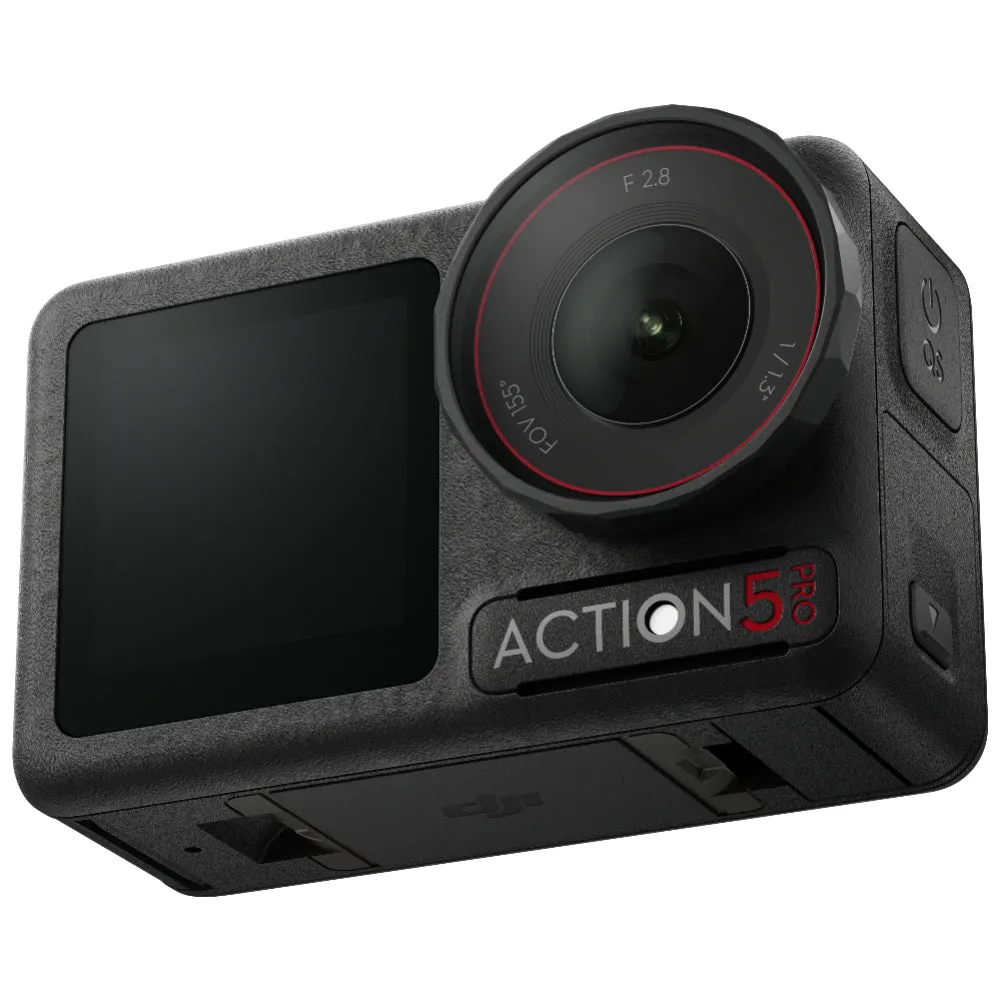

Next-Gen 1/1.3" Sensor
Our new sensor captures your best moments with precision. From city nights to dramatic sunrises, enjoy crystal-clear images powered by a cutting-edge 4nm chip. With 2.4 μm pixels and 13.5 stops of dynamic range, experience vibrant imagery that rivals professional cameras, ensuring every shot is rich in detail and colour.

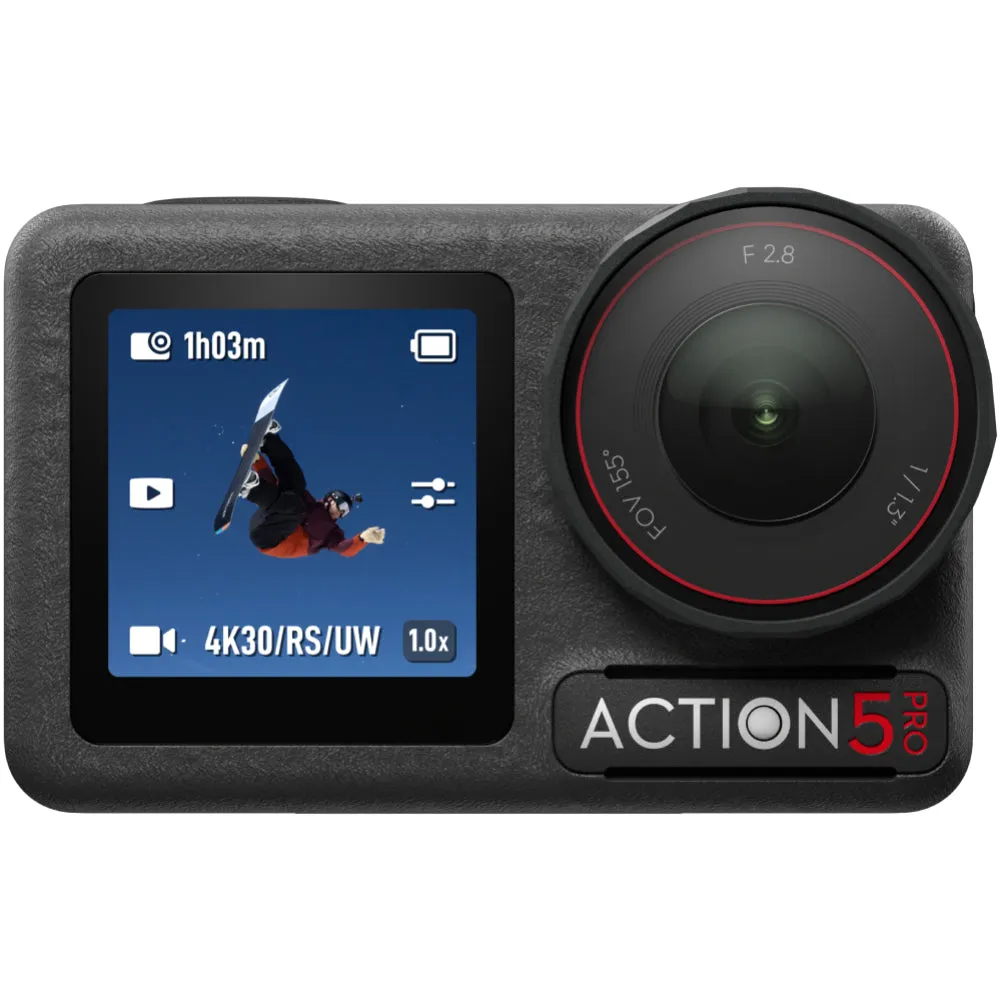

Crystal Clear OLED Touchscreens

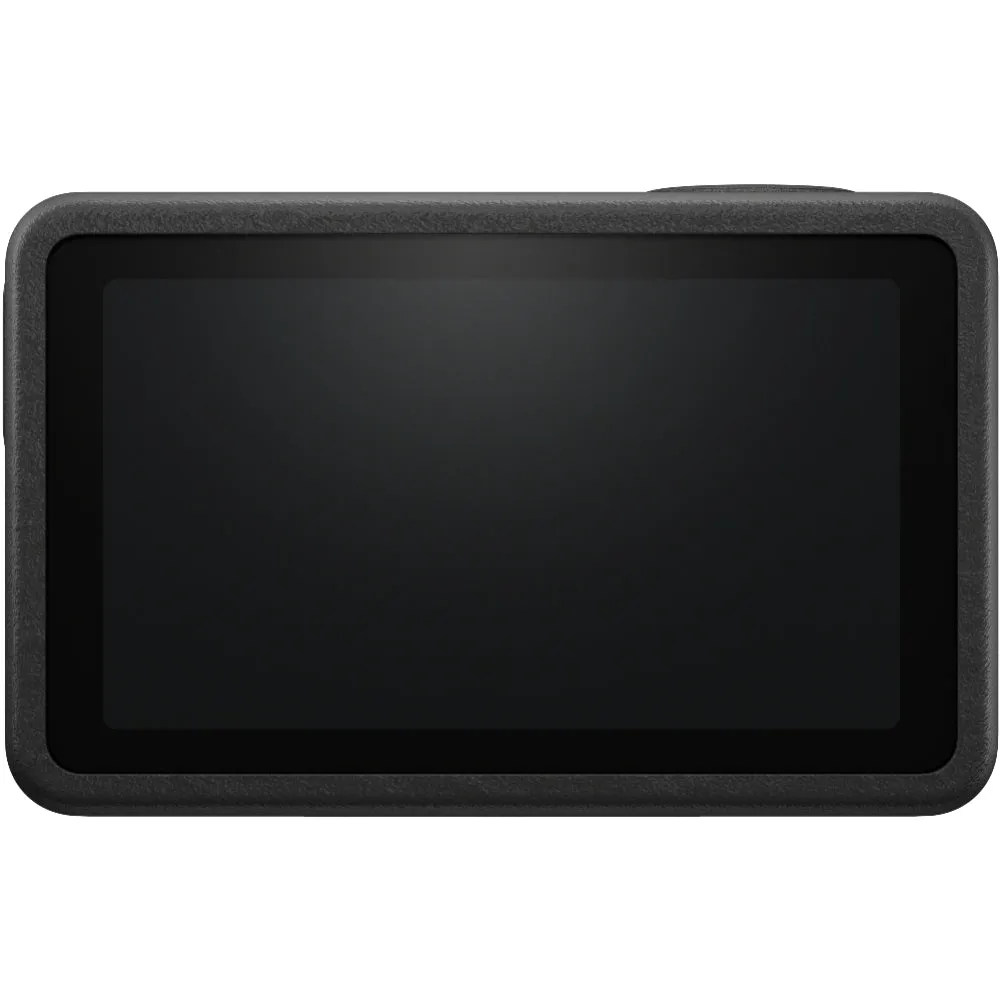

Catching the day's action? See it clearly thanks to the rear OLED screen's peak brightness now reaching a whopping 1000 nits. Make sure each shot has rich colours and high contrast with the front and rear OLED high-brightness touchscreens. The screens are larger with narrower bezels increasing the screen-to-body ratio by 16%.
Tempered glass ensures durability, and the AF coating keeps touch controls responsive, even when wet. With Always On Display enabled, both screens show recording duration and specifications for lower power consumption. Get essential information at a glance, without being disturbed by bright lights at night.
Get more colour depth with 10-bit D-Log M and 10-bit HLG modes. Detailed highlights and shadows ensure your footage will stand out from the crowd.
Colour All The Bases With 10-bit D-Log M
Action 5 Pro's front and rear touchscreens let you preview 10-bit D-Log M footage with colour recovery, so you can adjust colour and brightness for top-quality raw footage at a glance.
Bursting With 40MP of Action
Simply press the shutter for stunning shots and crop with confidence. Each photo boasts approximately 4x the clarity of the previous generation with roughly 40 megapixels (7294x5472) or 8K (16:9) resolution.
More to See, More to Share
155° Ultra-Wide FOV
Bring more life into every shot with the 155° ultra-wide FOV and capture video with a dynamic perspective.
4:3 Aspect Ratio Powers All the Pixels
Get more compositional space and cropping flexibility now that the maximum video specification has been upgraded to 4K/120fps in a 4:3 aspect ratio with full-pixel recording at 4K (3840x2880).
Slow-Motion Goes Super, 32 Times
Make the WOW last longer with 32x Super Slow Motion. The Action 5 Pro's powerful 4nm chip enables frame-by-frame analysis and 4x frame interpolation achieving up to 32x slow-motion; shoot at 1080p/240fps and produce the video equivalent of 960fps in post.
High-Octane Features for Go-Getters
Everything's On Track Now
DJI brings subject tracking to an action camera. Action 5 Pro now intelligently detects the subject's position and dynamically adjusts the composition. Keep the subject centered in every frame, during horizontal or vertical shots.
4-Hour Power
We're setting a new benchmark for action camera battery performance. A single battery now delivers up to four hours of continuous use. Never miss awesome with 50% more operating time compared to Action 4.
Even in low-temperature conditions get up to 3.6 hours recording time at temperatures as low as -20° C.
Specifications
- Revolutionary Imaging Performance With an All-new 1/1.3" Sensor
- Center and Track Subjects With Enhanced Precision
- Dual OLED High-brightness Touchscreens
- Robust Stabilisation With 360° HorizonSteady
- Capture More With 4hrs Extended Battery Life
- Professional Audio Recording With DJI Microphone Connection
Number of Microphones | 3 |
Touchscreens | Front Screen: 1.46-inch 331 ppi 342×342 800 cd/m² Rear Screen: 2.5-inch 326 ppi 400×712 800 cd/m² |
Supported SD Cards | microSD (up to 1 TB) |
Recommended microSD Card | SanDisk Extreme PRO 32GB U3 A1 V30 microSDHC Kingston CANVAS Go! Plus 64GB U3 A2 V30 microSDXC Kingston CANVAS Go! Plus 128GB U3 A2 V30 microSDXC Kingston CANVAS React Plus 64GB U3 A1 V90 microSDXC Kingston CANVAS React Plus 128GB U3 A1 V90 microSDXC Kingston CANVAS React Plus 256GB U3 A1 V90 microSDXC Lexar Professional 1066x 64GB U3 A2 V30 microSDXC Lexar Professional 1066x 128GB U3 A2 V30 microSDXC Lexar Professional 1066x 256GB U3 A2 V30 microSDXC Lexar Professional 1066x 512GB U3 A2 V30 microSDXC Kingston Canvas Go! Plus 1T U3 A2 V30 microSDXC |
Sensor | 1/1.3-inch CMOS |
Lens | FOV: 155° Aperture: f/2.8 Focus Range: 0.35 m to ∞ |
ISO Range | Photo: 100-25600 Video: 100-51200 |
Electronic Shutter Speed | Photo: 1/8000-30 s Video: 1/8000 s to the limit of frames per second |
Max Photo Resolution | 7296×5472 |
Zoom | Digital Zoom Photo: Max 2x Video: Max 2x Slow Motion/Timelapse: Not available |
Still Photography Modes | Single: Approx. 40 MP Countdown: Off/0.5/1/2/3/5/10 s Burst: Up to 30 images/3 seconds |
Standard Recording | 4K (4:3): 3840×2880@100/120fps 4K (4:3): 3840×2880@24/25/30/48/50/60fps 4K (16:9): 3840×2160@100/120fps 4K (16:9): 3840×2160@24/25/30/48/50/60fps 2.7K (4:3): 2688×2016@100/120fps 2.7K (4:3): 2688×2016@24/25/30/48/50/60fps 2.7K (16:9): 2688×1512@100/120fps 2.7K (16:9): 2688×1512@24/25/30/48/50/60fps 1080p (16:9): 1920×1080@100/120/200/240fps 1080p (16:9): 1920×1080@24/25/30/48/50/60fps |
SuperNight | 4K (16:9): 3840×2160@24/25/30fps 2.7K (16:9): 2688×1512@24/25/30fps 1080p (16:9): 1920×1080@24/25/30fps |
Subject Tracking | 2.7K (16:9): 2688×1512@24/25/30/48/50/60fps 2.7K (9:16): 2688×1512@24/25/30/48/50/60fps 1080p (16:9): 1920×1080@24/25/30/48/50/60fps 1080p (9:16): 1920×1080@24/25/30/48/50/60fps |
Slow Motion | 4K: 4x (120fps) 2.7K: 4x (120fps) 1080p: 8x (240fps), 4x (120fps) |
Hyperlapse | 4K/2.7K/1080p@25/30fps: Auto/×2/×5/×10/×15/×30 |
Timelapse | 4K/2.7K/1080p@25/30fps Intervals: 0.5/1/2/3/4/5/6/8/10/15/20/25/30/40 s, 1/2/5/30/60 mins Duration: 5/10/20/30 mins, 1/2/3/5 hours, ∞ |
Stabilisation | EIS: RockSteady 3.0 RockSteady 3.0 HorizonBalancing HorizonSteady |
Pre-Rec | Pre-Recording Duration: 5/10/15/30/60 s |
Max Video Bitrate | 100 Mbps |
Supported File System | exFAT |
Photo Format | JPEG/RAW |
Video Format | MP4 (HEVC) |
Built-in Storage Capacity | The camera features 64 GB of built-in storage, with 47 GB available for use. The storage capacity can be expanded by inserting a microSD card. |
Audio Recording | 48 kHz 16-bit; AAC |
Type | Li-ion 1S |
Capacity | 1950 mAh |
Energy | 7.5 Wh |
Voltage | 3.87 V |
Operating Temperature | -20° to 45° C |
Charging Temperature | 5° to 40° C |
Operating Time | 240 mins |
Wi-Fi Operating Frequency | 2.400-2.4835 GHz 5.150-5.250 GHz 5.725-5.850 GHz |
Wi-Fi Protocol | Wi-Fi 6.0 802.11 a/b/g/n/ac/ax |
Wi-Fi Transmitter Power (EIRP) | 2.4 GHz: < 23 dBm (FCC), < 20 dBm (CE/SRRC/MIC) 5.1 GHz: < 23 dBm (FCC/CE/SRRC/MIC) 5.8 GHz: < 23 dBm (FCC/SRRC), < 14 dBm (CE) |
Bluetooth Operating Frequency | 2.400-2.4835 GHz |
Bluetooth Transmitter Power (EIRP) | < 13 dBm |
Bluetooth Protocol | BLE 5.1 |
Dimensions | 7.05×4.42×3.28 cm (L×W×H) |
Weight | 0.146 kg |

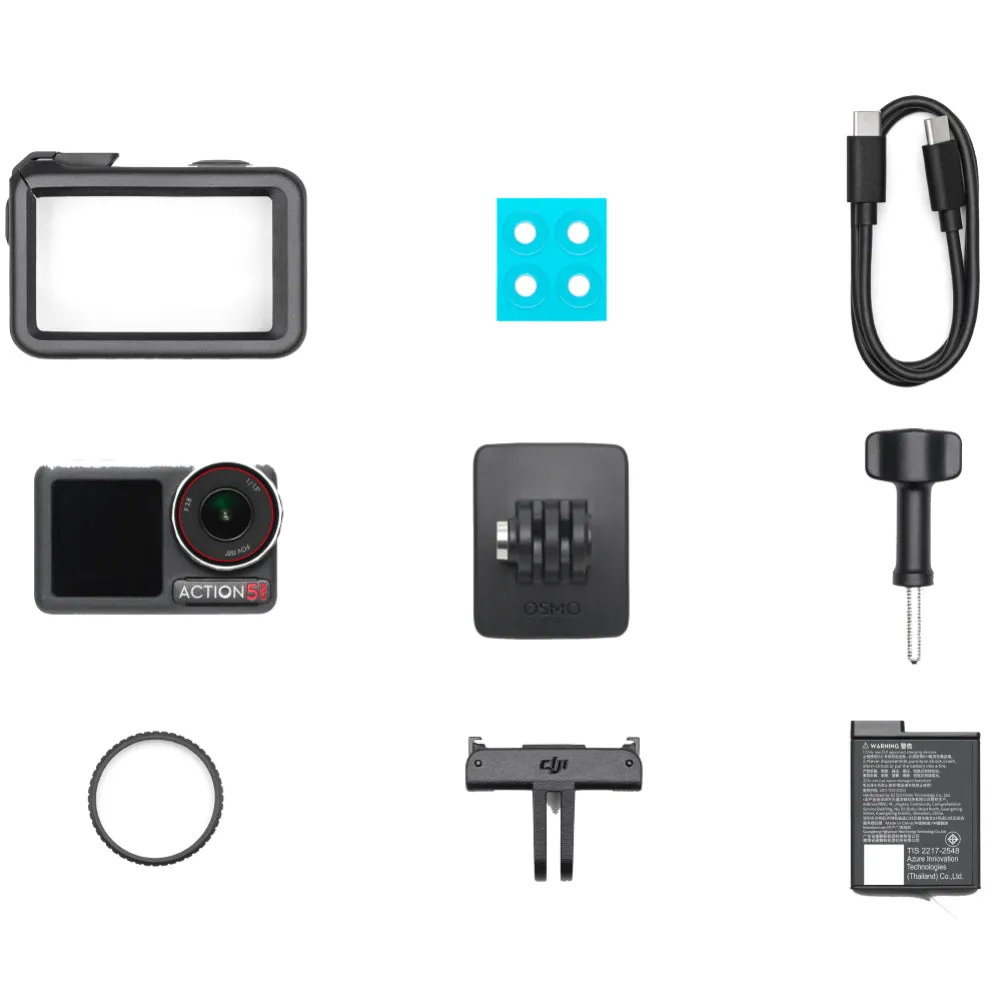

What's Included
1 x DJI Osmo Action 5 Pro Standard Combo
1 x Osmo Action Extreme Battery Plus (1950 mAh)
1 x Osmo Action Horizontal-Vertical Protective Frame

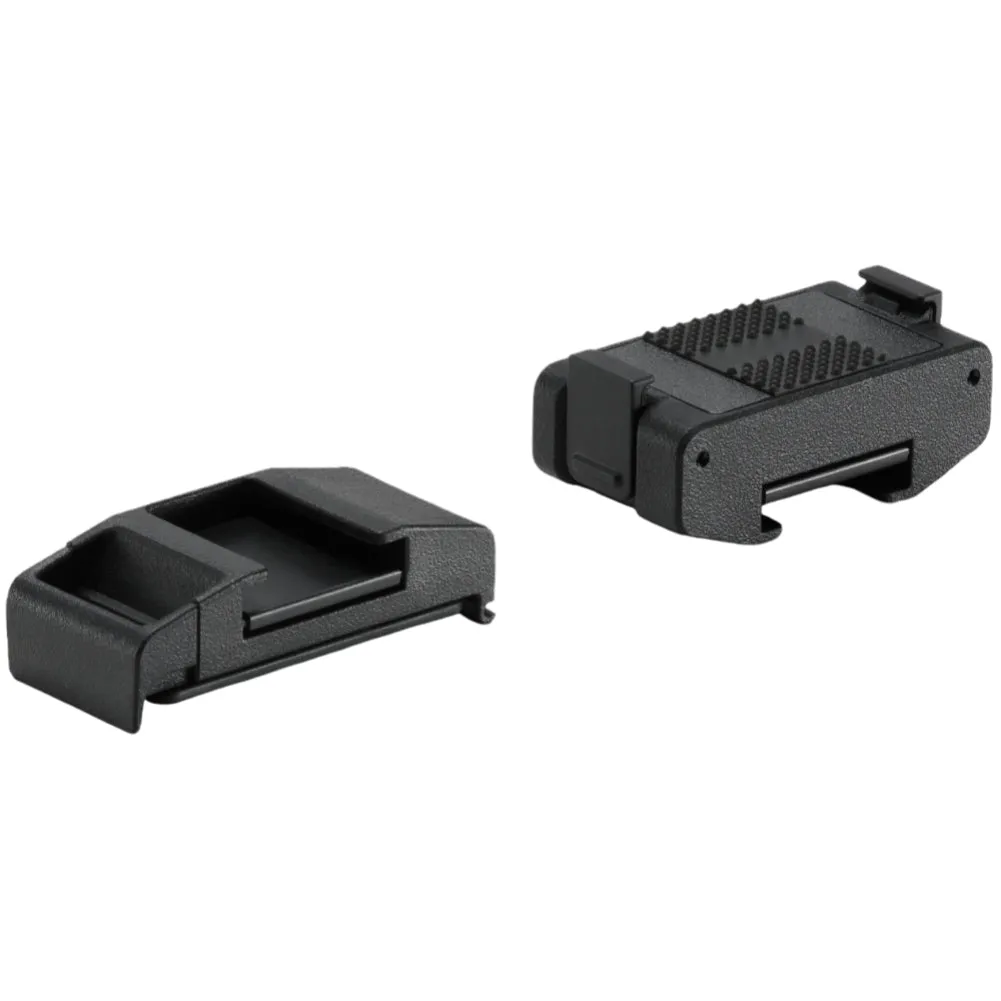

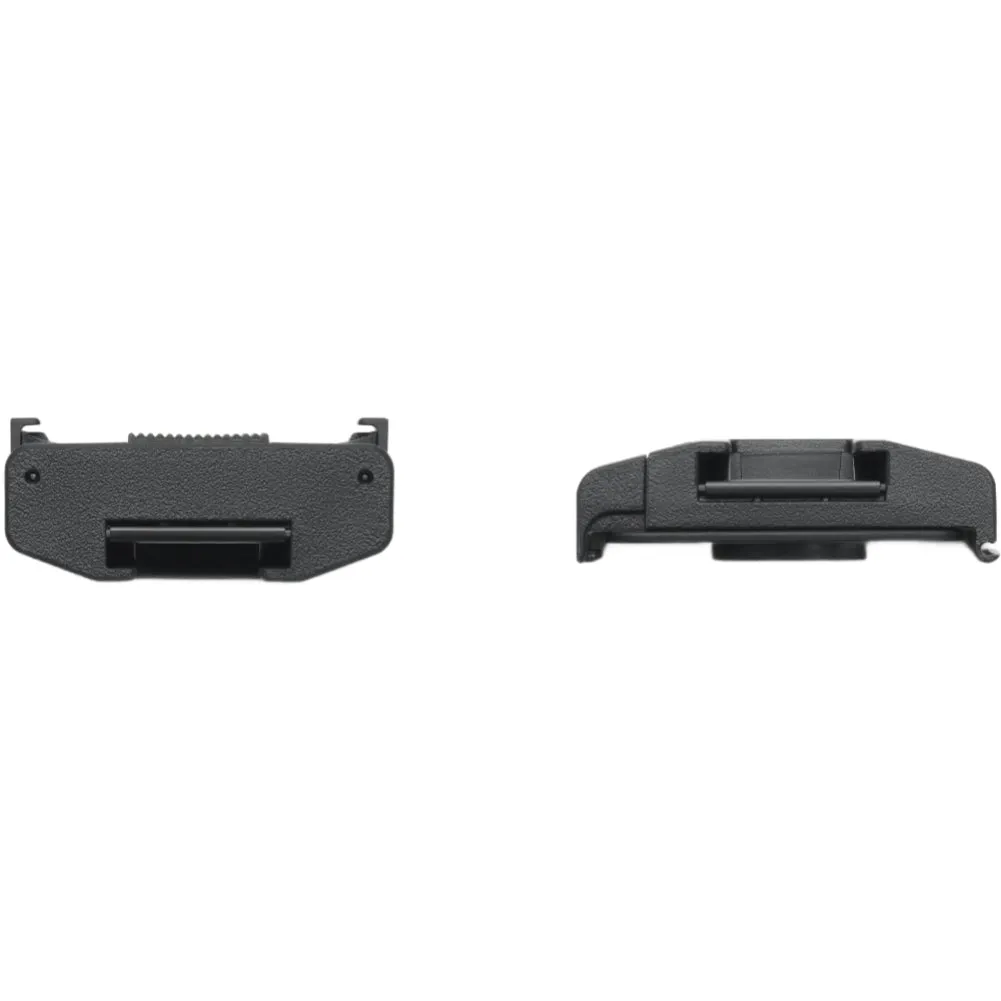

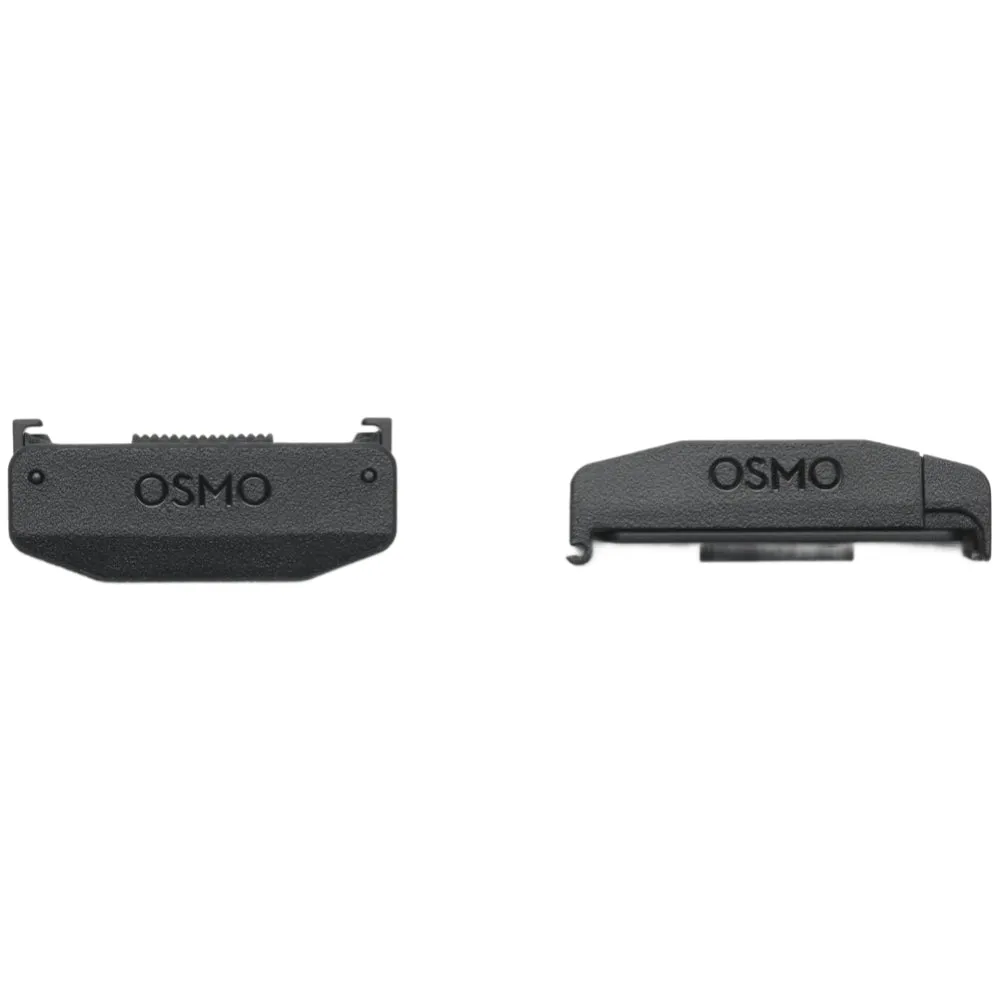

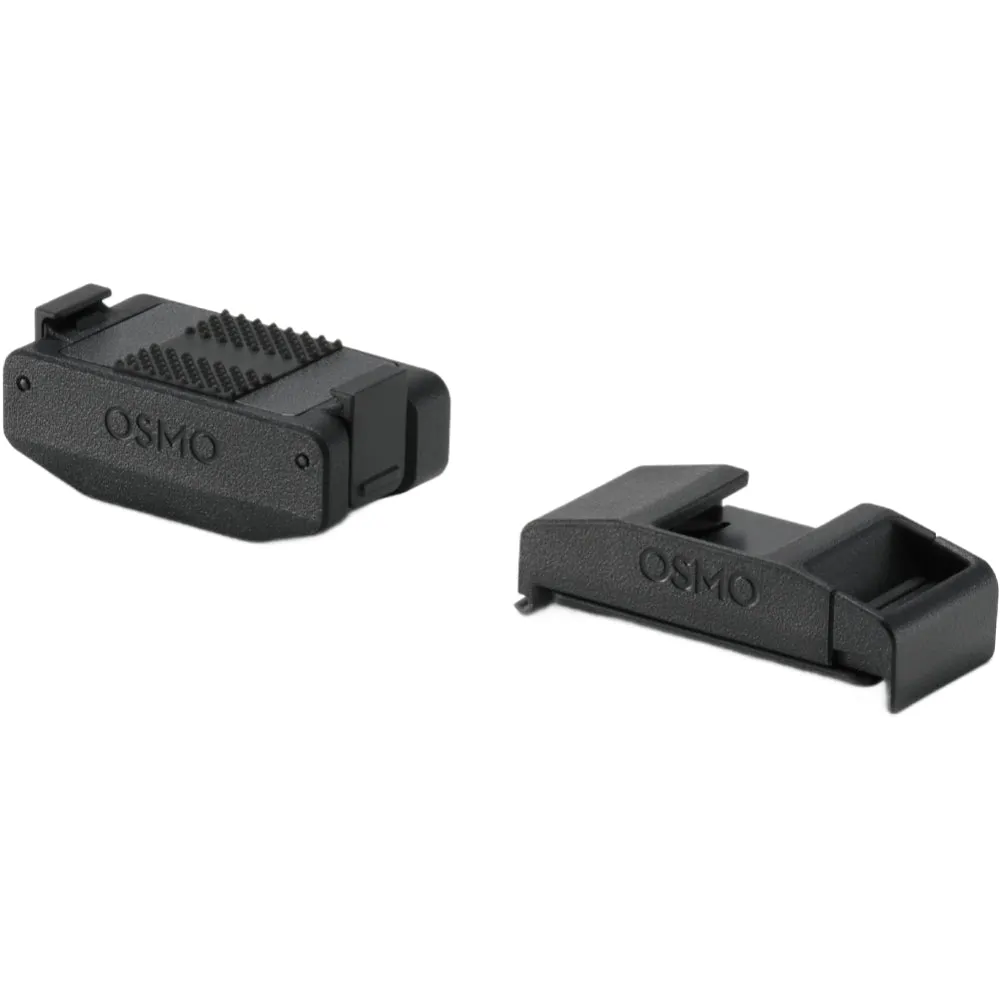

1 x Osmo Action Quick-Release Adapter Mount
1 x Osmo Action Quick-Release Adapter Mount (Mini)
1 x Osmo Action Curved Adhesive Base
1 x Osmo Locking Screw
1 x Type-C to Type-C PD Cable
1 x Osmo Action Multifunctional Battery Case
1 x Osmo 1.5m Extension Rod

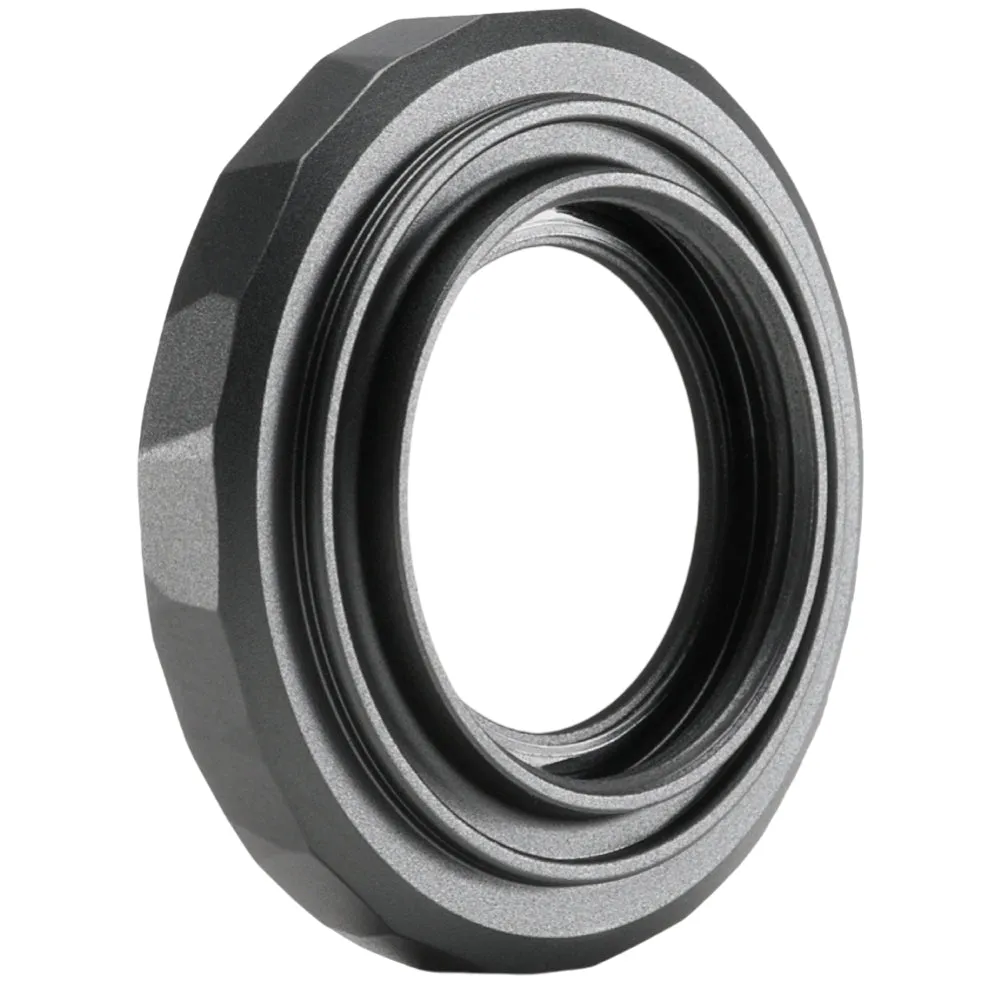

1 x Osmo Action 5 Pro Rubber Lens Protector

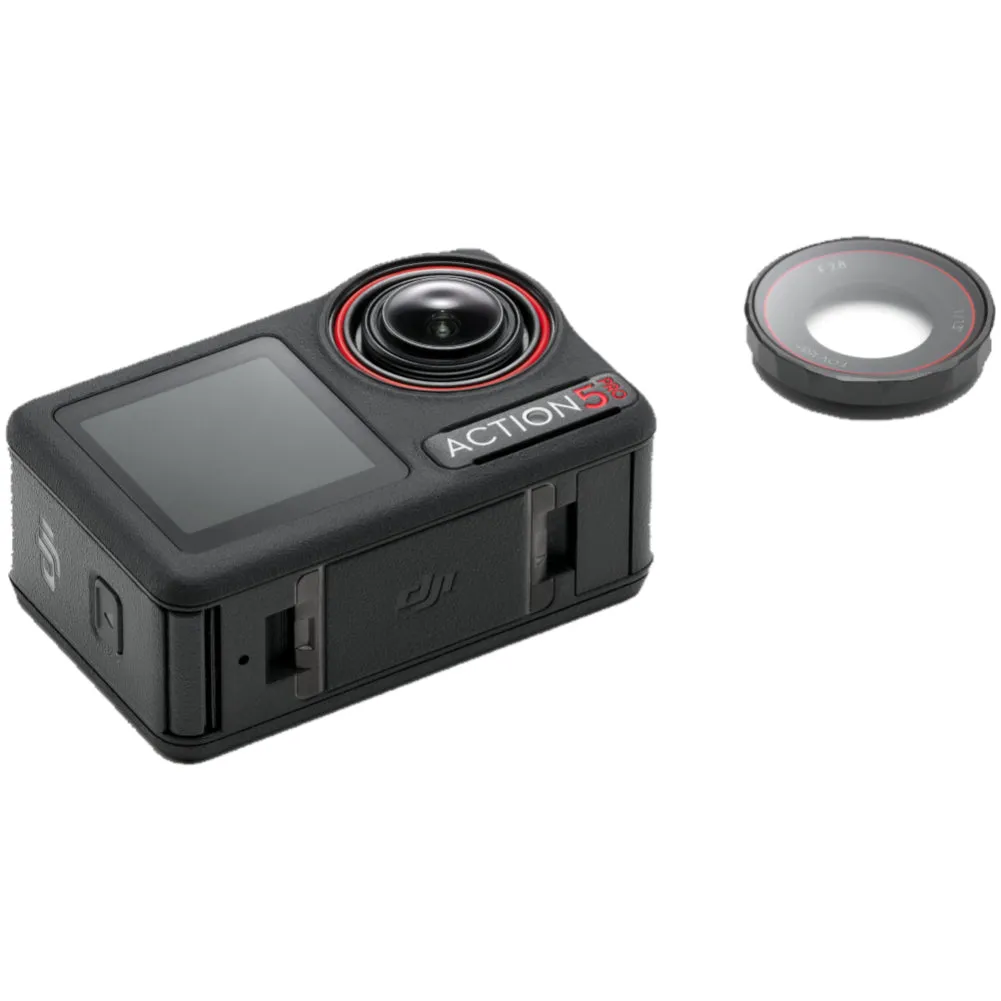

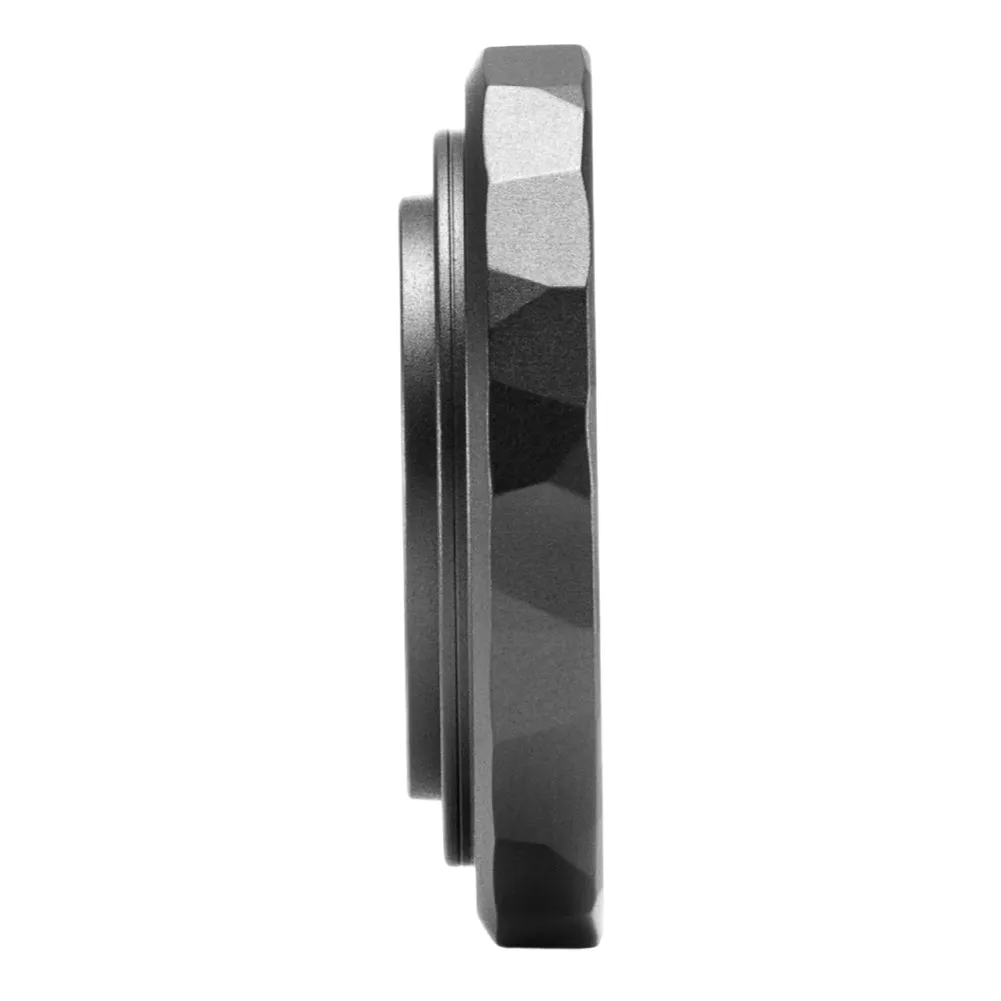

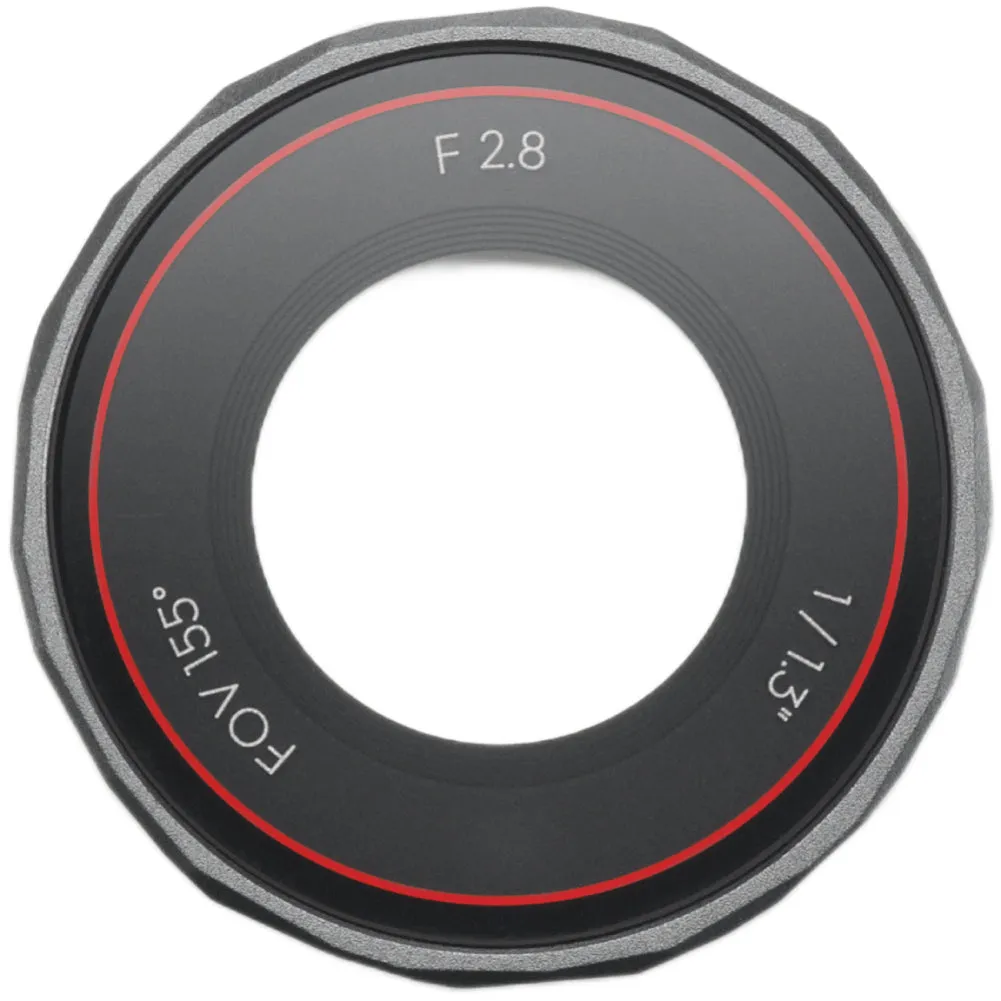

1 x Osmo Action 5 Pro Glass Lens Cover
1 x Osmo Action Anti-Slip Pad
1 x DJI Logo Sticker
1 x Quick Start Guide
