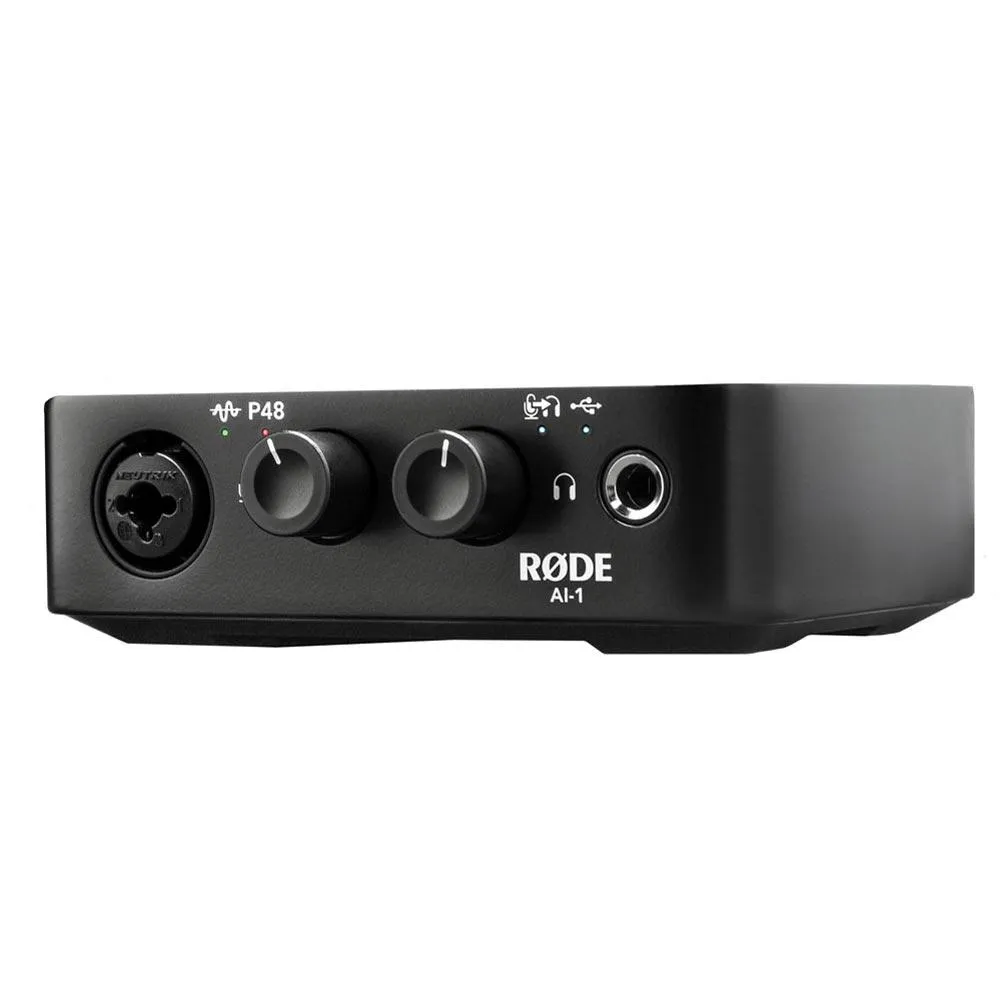

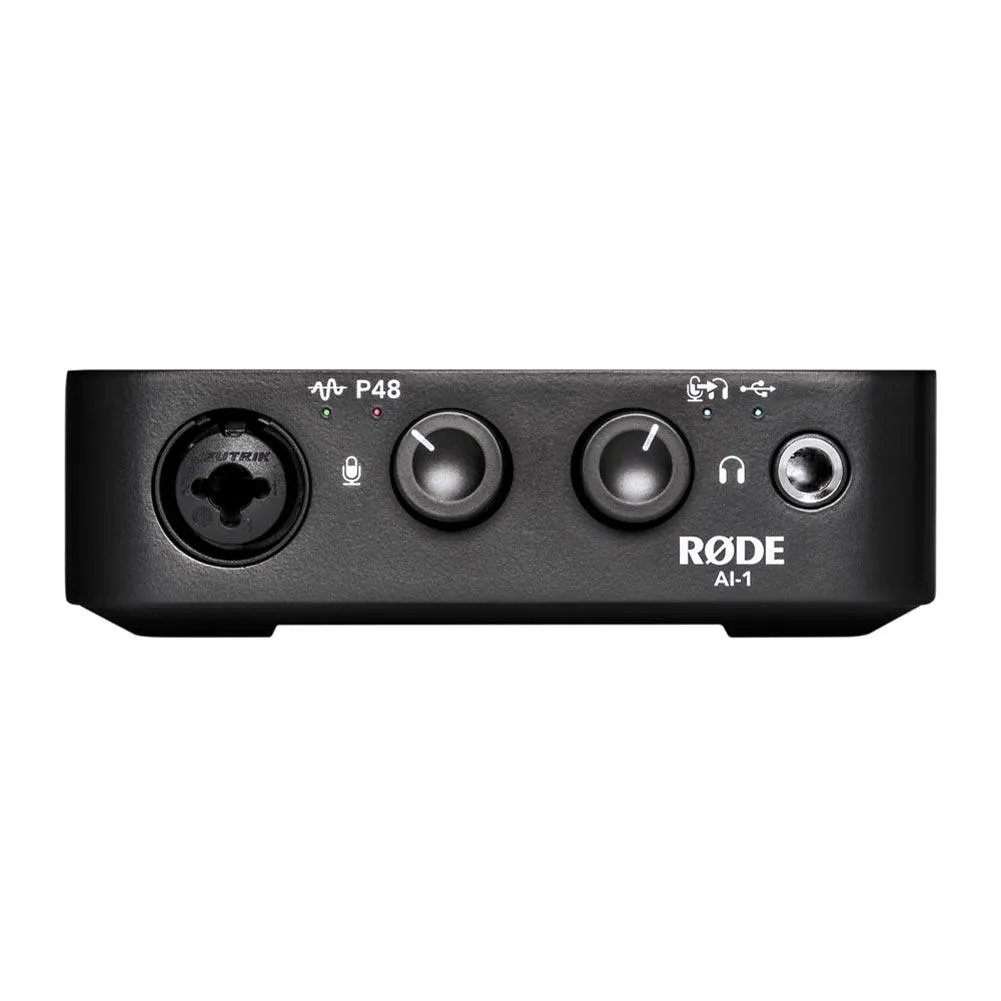

RØDE’s AI-1 Audio Interface is packed with incredible technology to ensure recording on your computer is easy, versatile and sounds superb. The AI-1’s single input is a NeutrikTM Combo Jack, which takes both a 3-pole XLR (common to most microphones) and a quarter-inch jack common to most electric instruments like guitar, bass et al.
Layering tracks is as easy as plug in, set level and go. Not only does the AI-1 deliver crystal clear audio to your computer software, but headphones have never sounded sweeter thanks to the discrete studio-quality headphone output and level control.
Features
- High-Speed USB-C Audio Interface
- 96kHz/24-Bit
- Premium Discrete Headphone Amplifier
- Single Combo XLR-1/4" Input
- Phantom Power for Condenser Microphones
- Two 1/4" Monitor Outputs
- Zero-Latency Monitoring
- Includes USB cable
AI-1 AUDIO INTERFACE SPECIFICATIONS
|
Computer Connectivity |
USB |
|
Form Factor |
Desktop |
|
Simultaneous I/O |
1 x 2 |
|
Number of Preamps |
1 |
|
Phantom Power |
Yes |
|
Bit Depth |
24-bit |
|
Sample Rates |
44.1 kHz |
|
Analog Inputs |
1 x Neutrik XLR-1/4” combo |
|

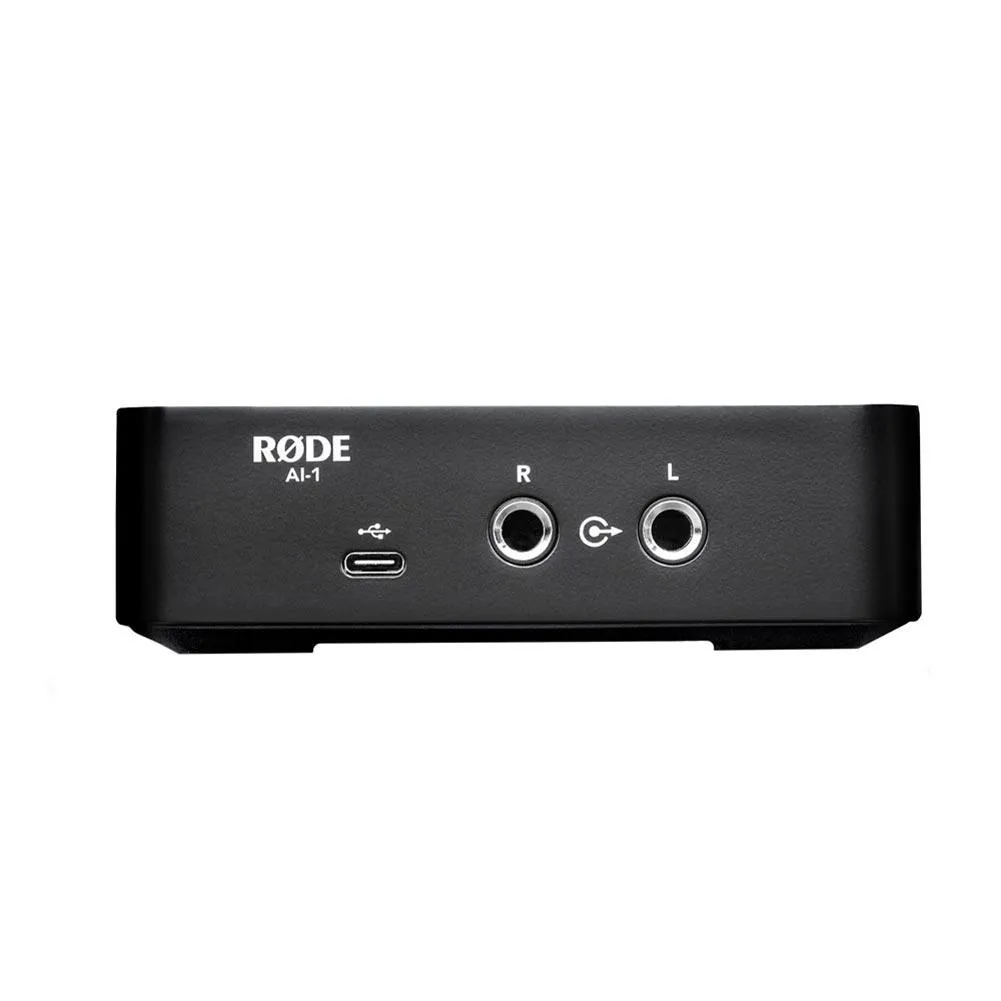

Analog Outputs |
2 x 1/4” (impedance balanced) |
|
Direct Monitor |
Yes |
|
USB |
1 x USB Type C |
|
Bus Powered |
Yes |
|
OS Requirements |
Mac OS 10.10 or later |
|
Power |
USB bus-powered |
|
Depth |
100mm total (with knobs) |
|
Width |
124mm |
|
Height |
38mm |
|
Weight |
1lb 3.7oz |
INPUT: XLR/MIC INPUT
|
Dynamic Range |
104dBA |
|
Equivalent Input Noise @ Maximum Gain (Source Impedance 150 ohms, 20Hz-20kHz, A-weighted) |
–128dBA |
|
Frequency Response (Measured after ADC) |
20Hz – 20kHz better than ±1dB |
|
Gain Range |
0dB – >45dB |
|
Gain Range |
1.3k Ohms |
INSTRUMENT INPUT
|
Dynamic Range |
99dBA |
|
Frequency Response (Measured after ADC) |
20Hz – 20kHz better than ±1dB |
|
Gain Range |
0dB – >45dB |
|
Input Impedance |
900k Ohms |
OUTPUT: MONITOR OUTPUTS
|
Maximum Output Level |
-6dBu |
|
Frequency Response |
20Hz – 20kHz better than ±1dB |
HEADPHONE
|
Max output power at 1% THD |
32Ohms – >210mW |
*Please note: Lifestyle images are used for illustration purposes only, please see 'What's Included' section for full product inclusions.
What's Included
1 x Rode AI-1 USB Audio Interface
1 x USB Cable
