Product Details
＋

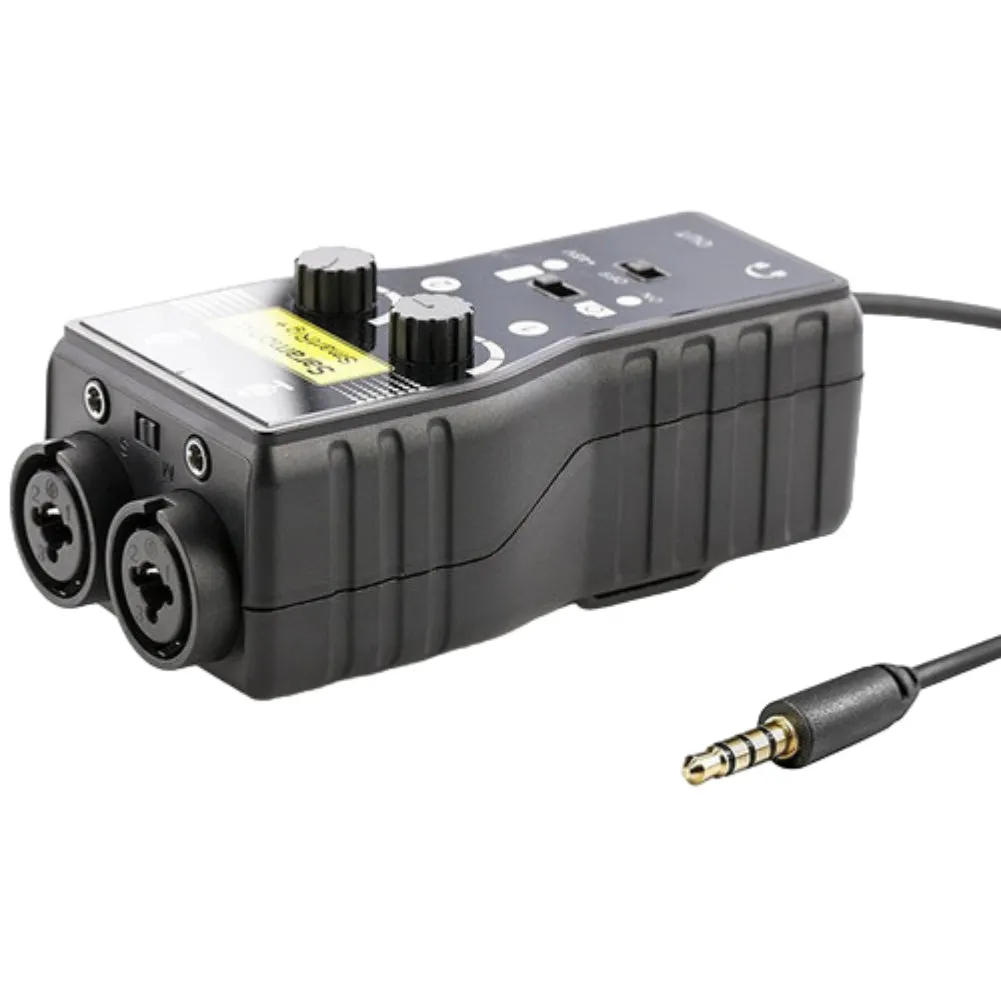

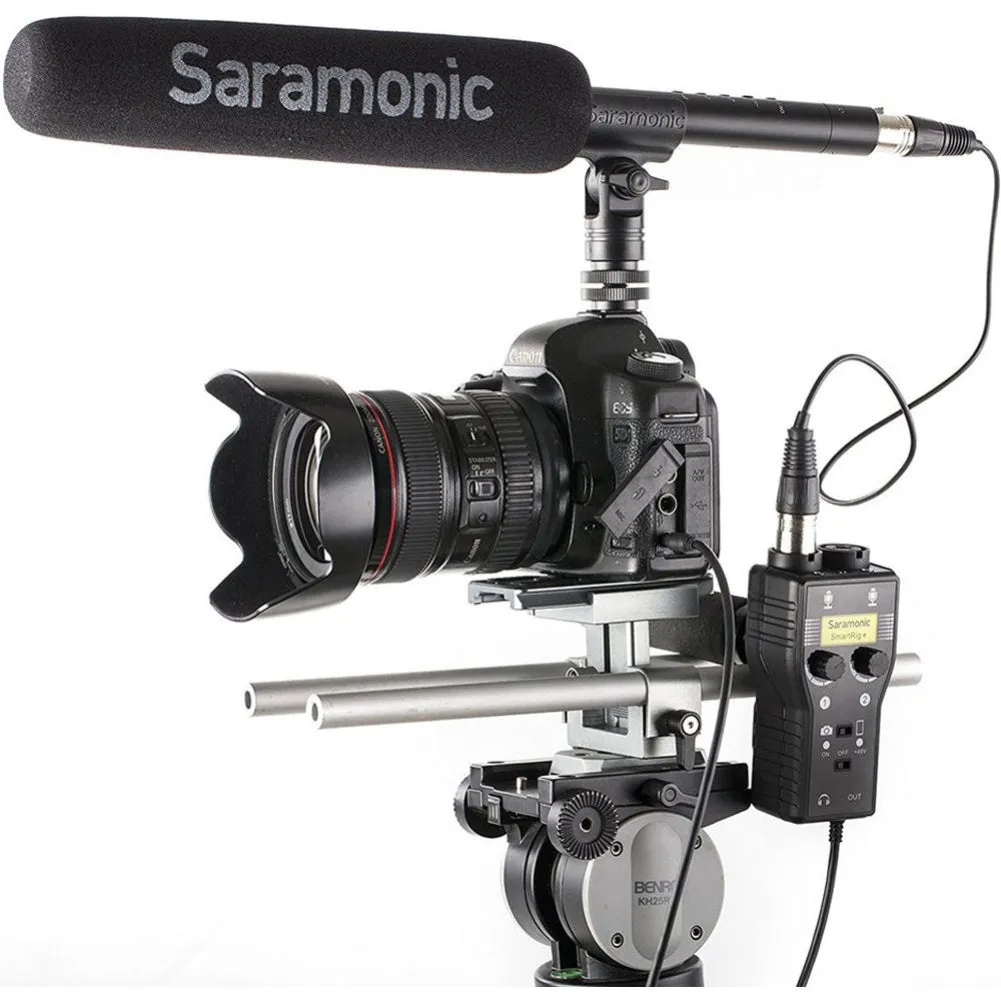

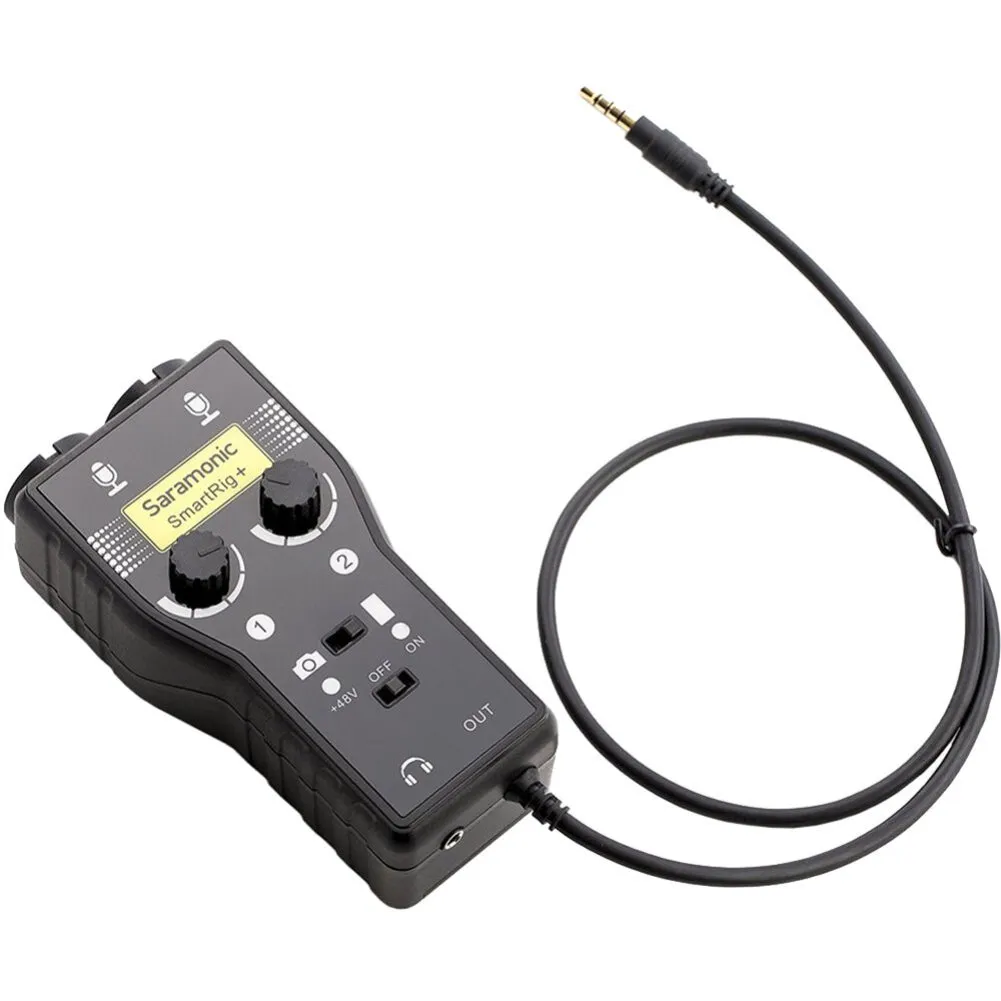

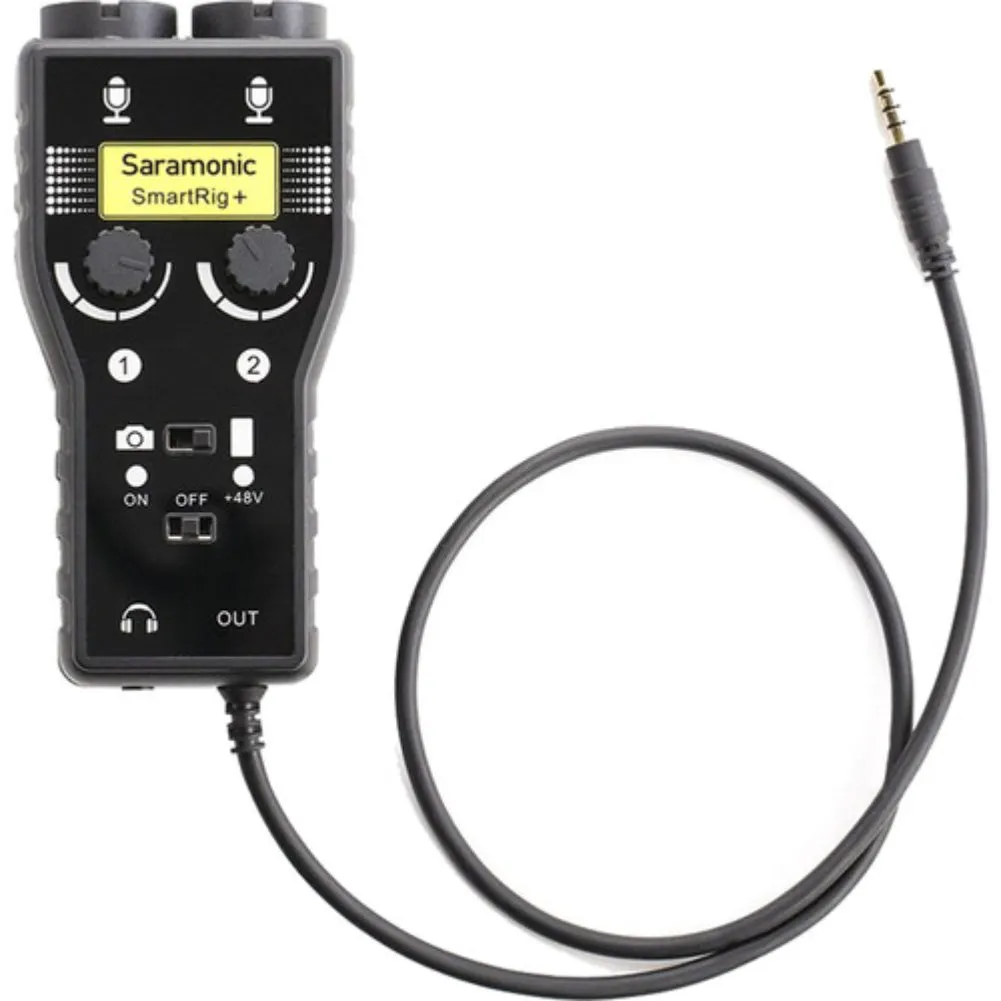

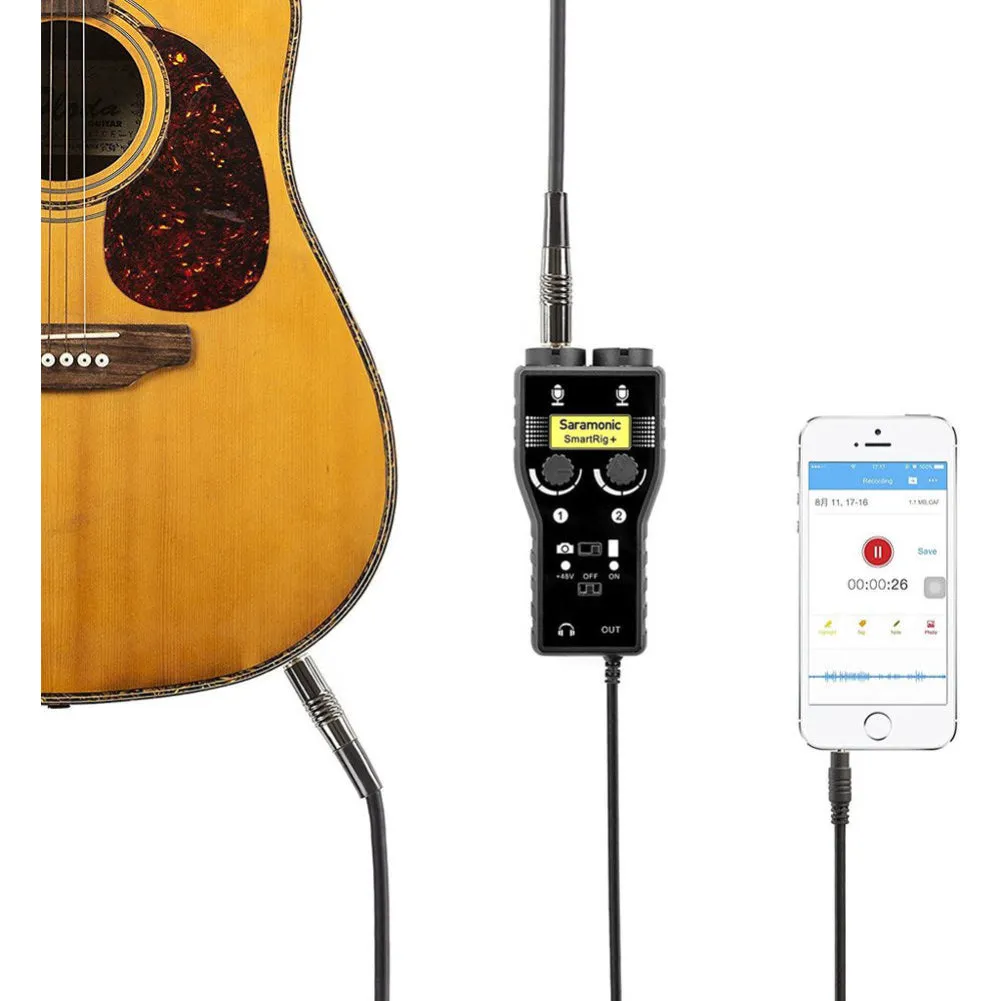

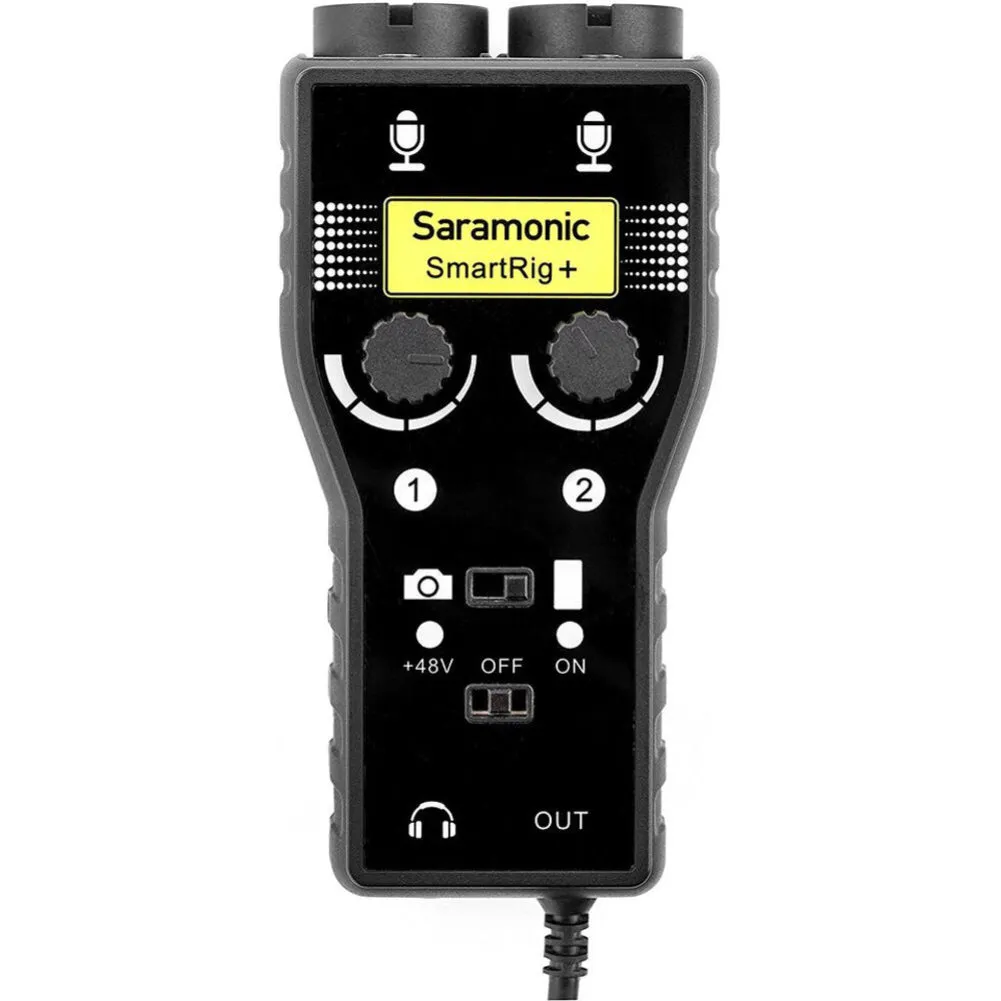

The Saramonic SmartRig 2-Channel XLR Microphone Audio Mixer is a portable interface that effortlessly connects professional microphones and guitars to smartphones, tablets, DSLR cameras, or video cameras, simplifying your recording process. With two independent channels, it allows simultaneous connection and gain control for multiple microphones or guitars. Its versatile inputs include two combo XLR / 1/4" inputs and two 1/8" jack inputs, accommodating various instruments or microphones, while the ability to toggle between mono and stereo output modes ensures flexibility for different recording needs.
- Outputs to a standard 1/8" cable for use with smartphones, cameras, and other devices
- Provides 48V phantom power for microphones
- 3.5mm headphone output for real-time sound monitoring
- Two gain control thumbwheels make it easy to set precise levels

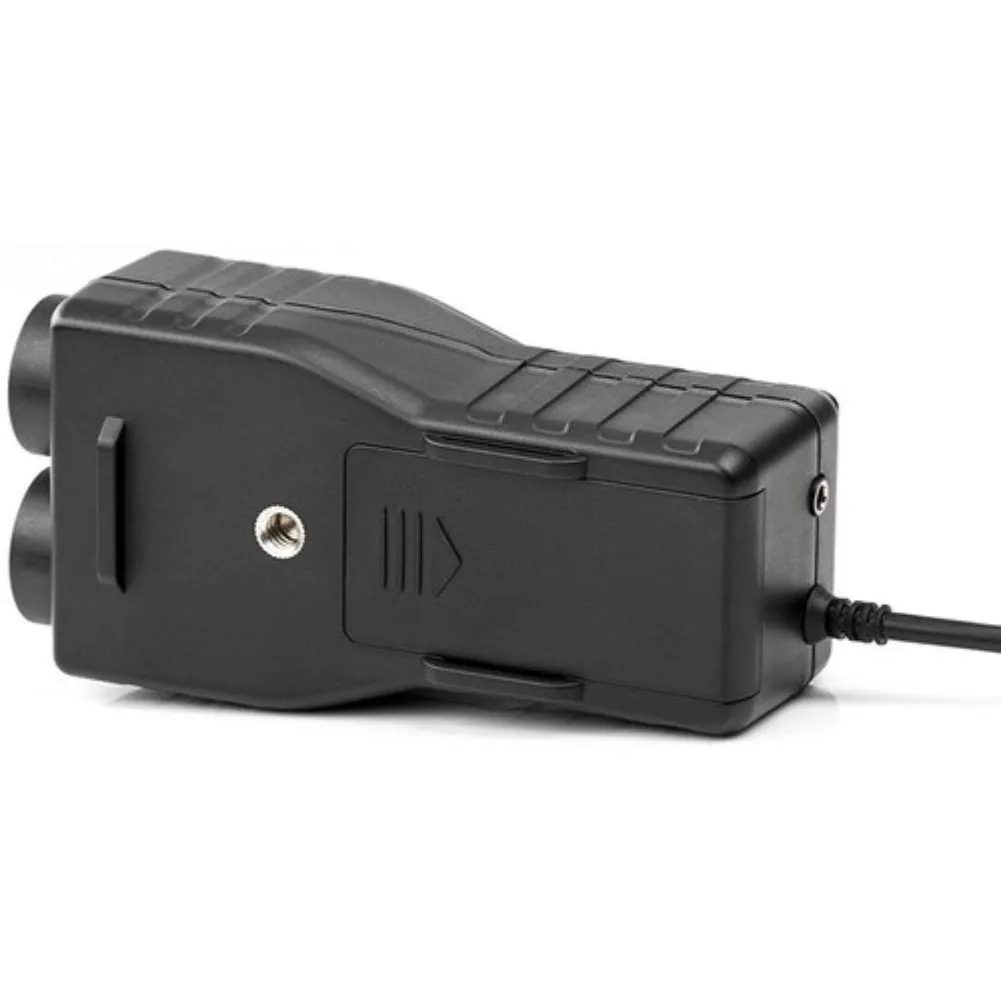

- Powered by one 9V battery
Specifications
- Portable Microphone/Guitar Interface
- 2 Simultaneous Input Channels
- XLR, 1/4", and 3.5mm Connection Points
- Smartphone & DSLR Connectivity
- Toggle Between Mono and Stereo Operation
- 48V Phantom Power for Condenser Mics
- 2 Gain-Control Thumbwheels
- Headphone Out for Real-Time Monitoring
- Outputs to Stereo 3.5mm Cable
- Powered by 9V Battery
| Display |
1x Monochrome LCD
|
| Channels of I/O |
2 Input / 1 Output
|
| Number of Analog Outputs |
1
|
| Number of Microphone Inputs |
2 Preamps
|
| Input Level Adjustment |
2x Knob
|
| Gain/Trim Range |
23 dBu
|
| Analog Audio I/O |
2x Combo XLR-1/4" TRS Mic/Line/Hi-Z Input
|
| 2x 1/8" / 3.5 mm TRS Line Input | |
| 1x 1/8" / 3.5 mm TRRS Line Output | |
| 1x 1/8" / 3.5 mm TRS Headphone Output | |
| Phantom Power |
48 V (on 2 Channels)
|
| Phantom Power Current |
13 mA
|
| Host Connection |
1/8" / 3.5 mm TRRS
|
| Frequency Response |
20 Hz to 20 kHz
|
| Maximum Output Level |
2 Vrms
|
| SNR |
80 dB (-30 dBu Input, 1 kHz)
|
| THD |
< 0.01% (-30 dBu Input, 1 kHz)
|
| OS Compatibility |
Android
|
| iOS | |
| Mobile Device Compatibility |
iPhone
|
| iPad | |
| iPod Touch | |
| Android Smartphone | |
| Power Requirements |
Battery
|
| Battery Type |
1x 9V
|
| Dimensions |
12.0 x 4.0 x 4.0 cm
|
| Weight |
130 g
|
What's Included
1 x Saramonic SmartRig 2-Channel XLR Microphone Audio Mixer
